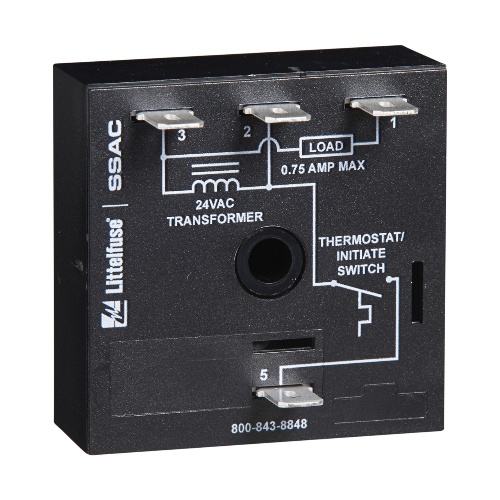

Littelfuse CT1S45 is a compact, encapsulated circuitry time delay relay. It has a maximum output load rating of 0.75 A steady state and 5 A inrush at 55°C. It features 0.25 in. (6.35 mm) male quick connect terminals for easy termination. With an input AC line frequency of 50/60 Hz and a tolerance of ±15%, this relay can operate effectively in various applications. It has a repeat accuracy of ±5% and a time delay tolerance of ≤±20%. The insulation resistance is ≥100 Ohms and the dielectric breakdown is ≥2000V between terminals and mounting surface. The output voltage drop is approximately 1.25V. The time delay type is microcontroller, and the recycle time is ≤300 ms. It also includes a thermostat anticipator resistor with a minimum resistance of 3000 Ohms. This reliable relay is designed to operate in high humidity conditions of up to 95% relative humidity without condensation.
