Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

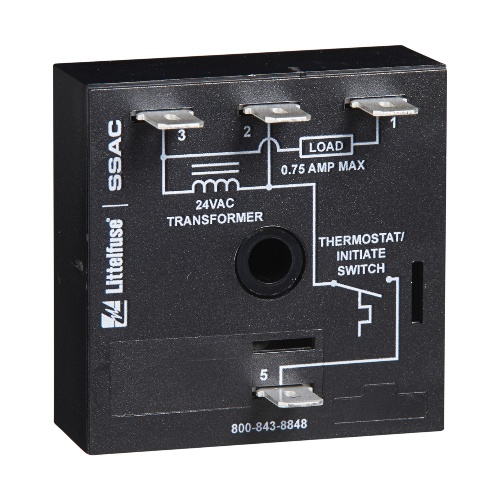

Littelfuse CT1S30 Time Delay Relay - 24 Volt, Normally Open
Normally In Stock
Code: 566124
Littelfuse CT1S30 - Delay on Make/Delay on Break Timer Series - 24 Volt - Surface mount with 1 #10 (M5 x 0.8) screw - 0.75 A steady state; 5 A inrush @ 55°C (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$65.21
Sale Price
$54.34
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse CT1S30 is an encapsulated circuitry time delay relay with a steady state output load rating of 0.75 A. It features 0.25 in. male quick connect terminals and can handle an inrush load of 5 A at 55°C. With an input AC line frequency of 50/60 Hz, it has a ±15% input tolerance and a repeat accuracy of ±5%. The relay has a humidity rating of 95% relative non-condensing and an insulation resistance of ≥100. Its time delay tolerance is ≤±20% and it has a dielectric breakdown of ≥2000V between terminals and mounting surface. The output voltage drop is approximately 1.25 V, and it operates with a microcontroller time delay type. The recycle time is ≤300 ms, and it requires a thermostat anticipator resistor with a value of ≥3000 Ohms.
Specifications
Relay Timing Range
1 S
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
24 Volt
Relay Mounting
Surface Mount
Relay Throws
Normally Open
Sub Component
Hvolts
