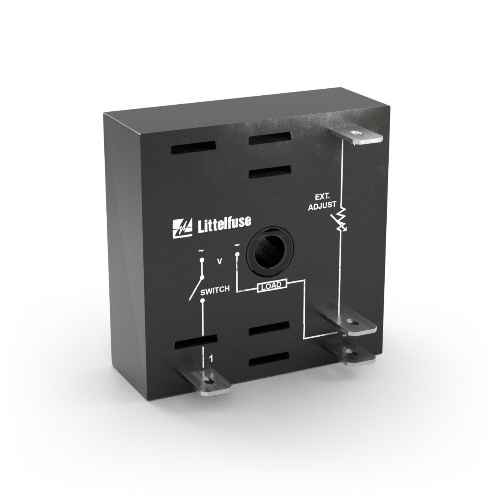

Littelfuse TCR9C Temperature Control

Littelfuse TCR9C is a thermistor sensor with a single setpoint, offering steady state output load rating of 20A and inrush rating of 200A. It features 0.25-inch male quick connect terminals and can tolerate input AC line frequencies of 50/60 Hz with ±15% tolerance. The reset time is less than 150ms, and it has a dielectric breakdown of ≥2000 terminals to mounting surface. With an output voltage drop of approximately 2.0V at rated current, it has an open state leakage current of approximately 5A at 230V. The sensor is electrically insulated for a minimum of 1500Vrms.

Specifications
Relay Poles	Single Pole
Manufacturer	Littelfuse
Relay Mounting	Surface Mount
Coil Voltage Rating	120-240 Volt
Component	Single Function Relay
