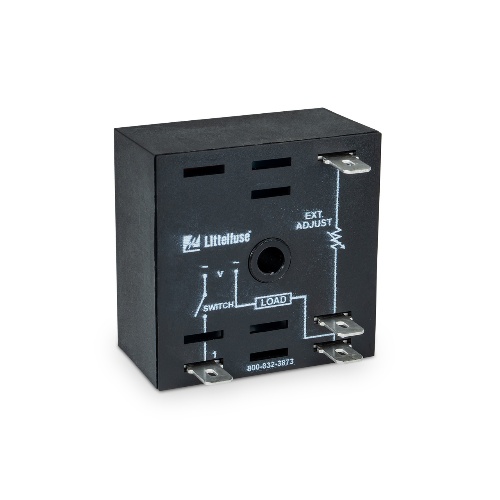

Littelfuse PHS230A6 AC Phase Control

Littelfuse PHS230A6 is a robust product designed for steady state and inrush loads. It features 0.25 in. male quick connect terminals for easy installation. With a wide input AC line frequency range of 50/60 Hz and ±20% input tolerance, it delivers consistent performance. Boasting a minimum output load current of 100 A, it ensures reliable operation. Its insulation resistance is ≥100 and can withstand dielectric breakdown of ≥2000 terminals to mounting surface. The output voltage drop at rated current is approximately 2.0 V. This product is suitable for applications with high humidity levels of 95% non-condensing.

Specifications
Manufacturer	Littelfuse
Coil Voltage Rating	230 Volt
Relay Mounting	Surface Mount
Component	Single Function Relay
