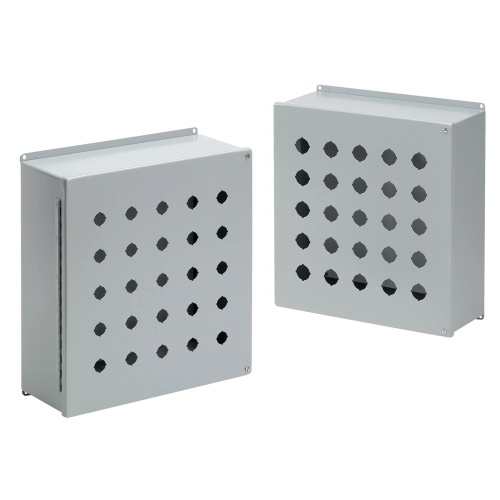

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
nVent Hoffman E30PBY25M Steel 22.5mm Extra Large Push Button Enclosure
Normally In Stock
Code: 5179
nVent Hoffman E30PBY25M 18.5" x 15" x 6" Type 12,Type 13 Indoor 30 Hole 22.5-mm Push Button Steel Enclosure Extra Large Gray (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$821.24
Sale Price
$684.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman E30PBY25M Steel 22.5mm Extra Large Push Button Enclosure Extra-Large 22.5-mm Steel Pushbutton Enclosure Type 12,13 indoor use with Panels for pushbuttons and switches, with 2.50-in. center-to-center of pushbutton holes.
Specifications
Enclosure Depth
6"
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure Door Type
Pushbutton 22.5 mm
Enclosure Width
15"
Enclosure Height
18.5"
Component
Push Button Enclosure
Enclosure Environment Rating
Indoor
Enclosure Latch Type
Screw
Push Button Number
30
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Oil-resistant gasket
Continuous hinge
Factory stamped 4-way pushbutton holes
Removable 14 gauge panel included, supported by weldnuts
Captivated cover screws thread into sealed wells
Seams continuously welded and ground smooth
Bonding provision on cover
30.5-mm or 22.5-mm size holes
External welded-on mounting brackets for easy installation
Downloads
Hoffman E30PBY25M 2D DXF CAD.zipHoffman E30PBY25M 3D STEP CAD.zipHoffman E30PBY25M CAD Drawing.zipHoffman E30PBY25M Declaration of Compliance.pdfHoffman E30PBY25M Dimension Drawing.gifHoffman E30PBY25M EU Certification.pdfHoffman E30PBY25M Instruction Manual.pdfHoffman E30PBY25M Repainting Instructions.pdfHoffman E30PBY25M Spec Sheet.pdfHoffman E30PBY25M UL Certification.pdfHoffman E30PBY25M User Manual.pdf
