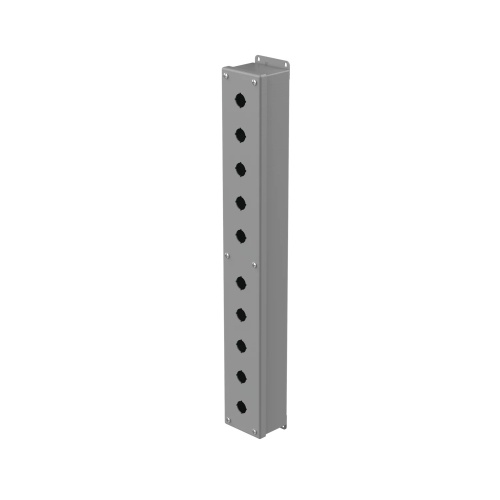

nVent Hoffman E10PBG Steel 22.5mm Push Button Enclosure Gray
Normally In Stock
Code: 5156
nVent Hoffman E10PBG 24.75" x 3.25" x 2.75" Type 12,Type 13 Indoor 10 Hole 22.5-mm Push Button Gray Steel Enclosure (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$370.07
Sale Price
$308.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman E10PBG Steel 22.5mm Push Button Enclosure Gray Steel 22.5-mm Pushbutton Enclosure Type 12,13 indoor use designed to hold 22.5-mm 4-way pushbuttons and switches. No welded seams or sharp corners.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure Depth
2.75"
Enclosure Door Type
Pushbutton 22.5 mm
Enclosure Interior Color
Yellow
Enclosure Width
3.25"
Enclosure Height
24.75"
Component
Push Button Enclosure
Enclosure Environment Rating
Indoor
Enclosure Latch Type
Screw
Push Button Number
10
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Oil-resistant gasket
Bonding provision on cover
Grounding stud on body
Factory stamped 4-way pushbutton holes
Captivated cover screws thread into sealed wells
Seams continuously welded and ground smooth
Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
30.5-mm or 22.5-mm size holes
External welded-on mounting brackets for easy installation
Downloads
Hoffman E10PBG 2D DXF CAD.zipHoffman E10PBG 3D STEP CAD.zipHoffman E10PBG CAD Drawing.zipHoffman E10PBG Declaration of Compliance.pdfHoffman E10PBG Dimension Drawing.gifHoffman E10PBG EU Certification.pdfHoffman E10PBG Repainting Instructions.pdfHoffman E10PBG Spec Sheet.pdfHoffman E10PBG UL Certification.pdf
