Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

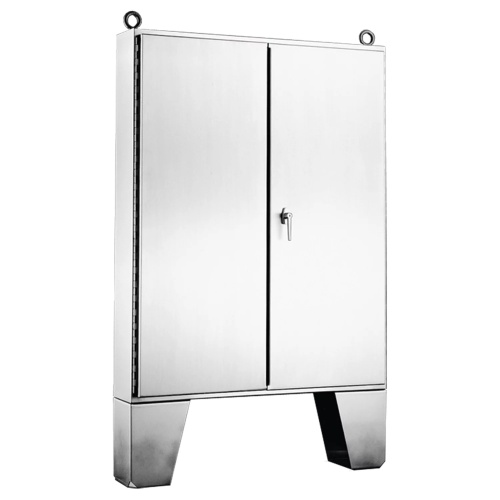

nVent Hoffman A604808SSLP Stainless Steel Enclosure
Normally In Stock
Code: 5011
nVent Hoffman A604808SSLP Enclosure Stainless Steel 60.06 x 48.06 x 8.06 inch (HxWxD) Type 12 Indoor 304 Stainless Free-Stand Two Door with heavy-gauge continuous hinges support each door and Plated steel 3-point latching mechanism and key-locking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$14520.53
Sale Price
$12100.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A604808SSLP Stainless Steel Enclosure Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water.
Specifications
Enclosure Depth
8"
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Keylocking
Enclosure Composition
304 Stainless Steel
Enclosure Latch Type
3 Point
Enclosure Height
60"
Enclosure Width
48"
Enclosure Mount Type
Floor Mount
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Heavy-gauge continuous hinges support each door
Gasketed overlapping doors eliminate need for centerpost
Plated steel 3-point latching mechanism and key-locking handle
Data pocket, provided on door with 3-point latches, is high-impact thermoplastic
Strong, rigid construction with body stiffeners
Seams continuously welded and ground smooth, no holes or knockouts
12-in. (305-mm) floor stands are bolted to enclosure
Bonding provision on doors, grounding studs on body
Collar studs for mounting optional panel
Panel supports
Heavy-duty lifting eyes are Type 316 stainless steel
Accessory mounting channel in top of enclosure
Downloads
Hoffman A604808SSLP 2D DXF CAD.zipHoffman A604808SSLP 3D STEP CAD.zipHoffman A604808SSLP CAD Drawing.zipHoffman A604808SSLP CSA Certification.pdfHoffman A604808SSLP Declaration of Compliance.pdfHoffman A604808SSLP Dimension Drawing.gifHoffman A604808SSLP Enclosure Alterations Manual.pdfHoffman A604808SSLP EU Certification.pdfHoffman A604808SSLP Instruction Manual.pdfHoffman A604808SSLP Large Enclosure Handling Manual.pdfHoffman A604808SSLP Spec Sheet.pdfHoffman A604808SSLP UL Certification.pdfHoffman A604808SSLP User Manual.pdf
