nVent Hoffman A726024SSFSDN4 Stainless Steel Enclosure
Normally In Stock
Code: 4843
nVent Hoffman A726024SSFSDN4 Enclosure Stainless Steel 72.06 x 60.06 x 24.06 inch (HxWxD) Type 4X 304 Stainless Steel Single Access Free-Stand(Floor Mount) Enclosure with Heavy-gauge continuous hinges support each door. Heavy-duty three-point latching mechanism operated by Type 316L stainless steel POWERGLIDE padlocking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New

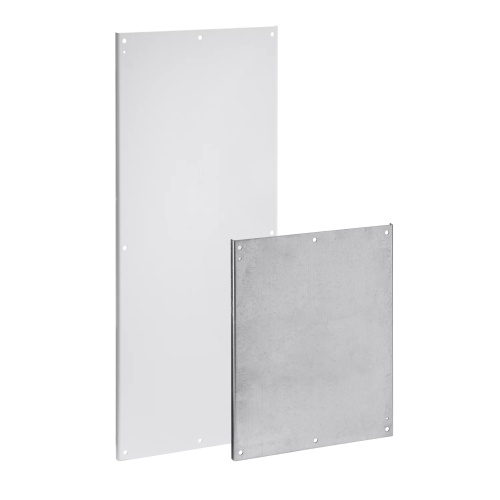

Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$26402.99
Sale Price
$22002.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A726024SSFSDN4 Stainless Steel Enclosure For indoor or outdoor applications that require corrosion protection from chemicals and water, CONCEPT enclosures house larger controls and feature streamlined styling with an attractive stroked finish, flush quarter-turn latches and an integral door ramp that ensures the door gasket sealing surface aligns with the enclosure body for secure closure.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Depth
24"
Enclosure Mount Type
Free-Standing
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
60"
Enclosure Height
72"
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Seemless foam-in-place gasket assures a water-tight and dust-tight seal
Heavy-duty lifting eyes are Type 316L stainless steel
Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
Body flange trough collar excludes liquids and contaminants
Two-door enclosures provided with a removable centerpost for easy panel installation
Seams continuously welded and ground smooth, no holes or knockouts
Heavy-gauge continuous hinges support each door
Bonding provision on door, grounding stud on body
Optional panels and rack mounting angles can be mounted anywhere along channels
Mounting channels welded horizontally to interior body sides at top, bottom and center
High-impact thermoplastic data pocket provided with each enclosure
Accessory mounting channel provided in enclosure top
Downloads
Hoffman A726024SSFSDN4 2D DXF CAD.zipHoffman A726024SSFSDN4 3D STEP CAD.zipHoffman A726024SSFSDN4 CAD Drawing.zipHoffman A726024SSFSDN4 CSA Certification.pdfHoffman A726024SSFSDN4 Declaration of Compliance.pdfHoffman A726024SSFSDN4 Enclosure Alterations Manual.pdfHoffman A726024SSFSDN4 EU Certification.pdfHoffman A726024SSFSDN4 Instruction Manual.pdfHoffman A726024SSFSDN4 Large Enclosure Handling Instructions.pdfHoffman A726024SSFSDN4 Large Enclosure Handling Manual.pdfHoffman A726024SSFSDN4 Spec Sheet.pdfHoffman A726024SSFSDN4 UL Certification.pdfHoffman A726024SSFSDN4 User Manual.pdf
