nVent Hoffman A484812WFSSLP Stainless Steel Enclosure
Normally In Stock
Code: 4775

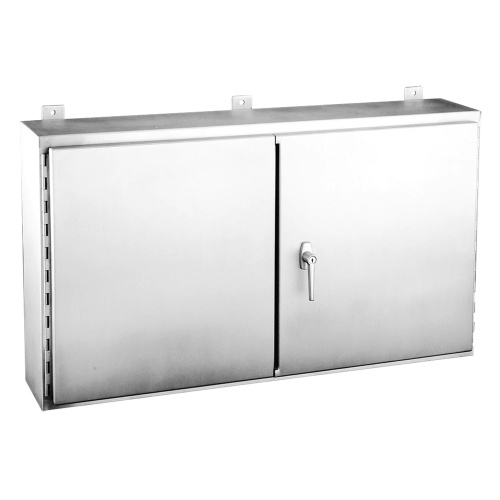

nVent Hoffman A484812WFSSLP Enclosure Stainless Steel 48 x 48 x 12 inch (HxWxD) Type 12 Indoor 304 Stainless Steel Enclosure with continuous hinge and Plated steel 3-point latching mechanism and keylocking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$10647.89
Sale Price
$8873.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A484812WFSSLP Stainless Steel Enclosure Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
12"
Enclosure Lock Type
Keylocking
Enclosure Composition
304 Stainless Steel
Enclosure Latch Type
3 Point
Enclosure Height
48"
Enclosure Width
48"
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
External mounting brackets
Rolled lip around all sides of enclosure body opening
Gasketed overlapping doors eliminate need for centerpost
Plated steel 3-point latching mechanism and keylocking handle
Seams continuously welded and ground smooth
3 Point latching mechanism for simple, reliable one-motion closure
Easily removable doors by pulling heavy-gauge continuous hinge pin
Bonding provision on doors, grounding studs on body
Collar studs provided for mounting optional panels
Data pocket is high-impact thermoplastic
Downloads
Hoffman A484812WFSSLP 2D DXF CAD.zipHoffman A484812WFSSLP 3D STEP CAD.zipHoffman A484812WFSSLP CAD Drawin.zipHoffman A484812WFSSLP CSA Certification.pdfHoffman A484812WFSSLP Declaration of Compliance.pdfHoffman A484812WFSSLP Dimension Drawing.gifHoffman A484812WFSSLP Enclosure Alterations Manual.pdfHoffman A484812WFSSLP EU Certification.pdfHoffman A484812WFSSLP Instruction Manual.pdfHoffman A484812WFSSLP Spec Sheet.pdfHoffman A484812WFSSLP UL Certification.pdfHoffman A484812WFSSLP User Manual.pdf
