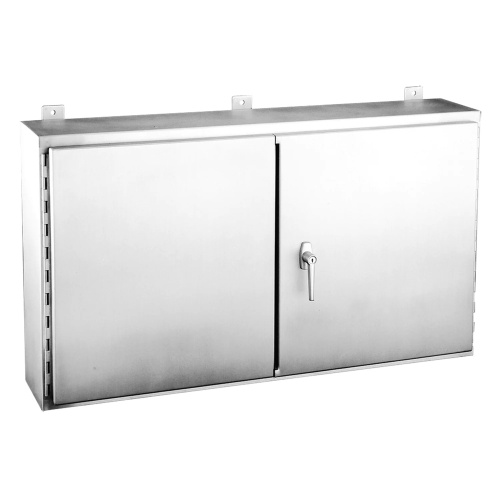

nVent Hoffman A244808WFSSLP Stainless Steel Enclosure
Normally In Stock
Code: 4765
nVent Hoffman A244808WFSSLP Enclosure Stainless Steel 24 x 48 x 8 inch (HxWxD) Type 12 Indoor 304 Stainless Steel Enclosure with continuous hinge and Plated steel 3-point latching mechanism and keylocking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$6709.52
Sale Price
$5591.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A244808WFSSLP Stainless Steel Enclosure Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.
Specifications
Enclosure Depth
8"
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Keylocking
Enclosure Composition
304 Stainless Steel
Enclosure Latch Type
3 Point
Enclosure Height
24"
Enclosure Width
48"
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
External mounting brackets
Rolled lip around all sides of enclosure body opening
Gasketed overlapping doors eliminate need for centerpost
Plated steel 3-point latching mechanism and keylocking handle
Seams continuously welded and ground smooth
3 Point latching mechanism for simple, reliable one-motion closure
Easily removable doors by pulling heavy-gauge continuous hinge pin
Bonding provision on doors, grounding studs on body
Collar studs provided for mounting optional panels
Data pocket is high-impact thermoplastic
Downloads
Hoffman A244808WFSSLP 2D DXF CAD.zipHoffman A244808WFSSLP 3D STEP CAD.zipHoffman A244808WFSSLP Alteration Instructions.pdfHoffman A244808WFSSLP CAD Drawing.zipHoffman A244808WFSSLP CSA Certification.pdfHoffman A244808WFSSLP Declaration of Compliance.pdfHoffman A244808WFSSLP Dimension Drawing.gifHoffman A244808WFSSLP Enclosure Alterations Manual.pdfHoffman A244808WFSSLP EU Certification.pdfHoffman A244808WFSSLP Grounding Kit Instructions.pdfHoffman A244808WFSSLP Instruction Manual.pdfHoffman A244808WFSSLP Spec Sheet.pdfHoffman A244808WFSSLP UL Certification.pdf
