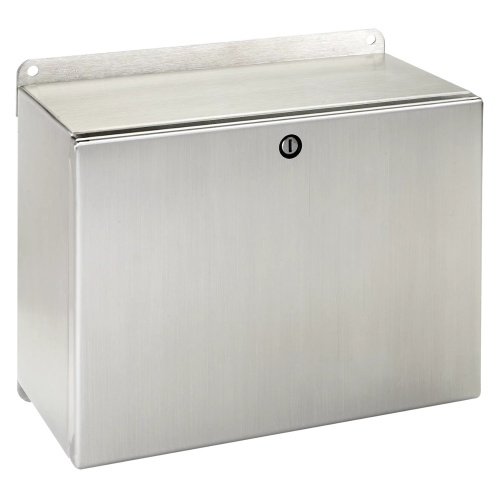

nVent Hoffman LHC237716SS INLINE Stainless Steel Enclosure
Normally In Stock
Code: 4372
nVent Hoffman LHC237716SS INLINE Enclosure Stainless Steel Hinged Landscape 9" x 30.32" x 6.10" HxWxD (230 mm x 770 mm x 155mm) Type 4x INLINE 304 Stainless Steel Landscape INLINE Enclosure with removable hinges and quarter-turn latches. Door opens 180 degrees. External formed body flange trough. When applications require mounting electrical components the full width of the INLINE Enclosure, the landscape orientation of this aesthetic INLINE Enclosure makes this possible. The full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1260.02
Sale Price
$1050.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman LHC237716SS INLINE Stainless Steel Enclosure Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons in hostile environments, QLINE D Enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Door Type
Window
Enclosure Composition
304 Stainless Steel
Enclosure Depth
6.1"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
9"
Enclosure Width
30.31"
Line
Inline
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Mounting brackets are spot-welded to top and bottom of enclosure
External formed body flange trough
Large perimeter body opening
Mounting brackets have predrilled mounting holes, customer-specific location holes can be drilled for mounting flexibility
Seams continuously welded and ground smooth
Full width bracket for mounting flexibility
Seamless foam-in-place gasket
Door opens 180 degrees
Hinged door with removable hinge pins and self-grounding quarter-turn latch system with double seal
Furnished hardware kit includes panel mounting screws and grounding hardware
M6 ground stud with base flange on body, M6 bonding provision with base flange on door
Window door models include 3/16-in. (4.8-mm) clear polycarbonate window mounted flush with door surface
Downloads
Hoffman LHC237716SS 2D DXF CAD.zipHoffman LHC237716SS 3D STEP CAD.zipHoffman LHC237716SS CAD Drawing.zipHoffman LHC237716SS CSA Certification.pdfHoffman LHC237716SS Declaration of Compliance.pdfHoffman LHC237716SS Dimension Drawing.gifHoffman LHC237716SS EU Certification.pdfHoffman LHC237716SS Instruction Manual.pdfHoffman LHC237716SS Spec Sheet.pdfHoffman LHC237716SS UL Certification.pdfHoffman LHC237716SS User Manual.pdf
