Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 4361

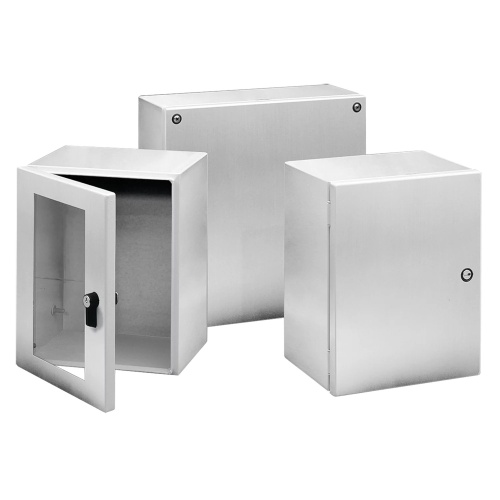

nVent Hoffman LWC252015SS INLINE Stainless Steel Window Enclosure
nVent Hoffman LWC252015SS INLINE Enclosure Stainless Steel with Window Hinged 10" x 8" x 6" HxWxD (250 mm x 200 mm x 150 mm) Type 4x INLINE 304 Stainless Steel Window INLINE Enclosure with removable hinges and quarter-turn latches. Fastening holes in back of body for direct mounting or optional external mounting brackets. Aesthetic styling, flush latches and an attractive, stroked finish make INLINE Enclosures an excellent choice when style and functionality are important. INLINE Enclosures have an outward formed body flange to prevent contaminants from entering the INLINE Enclosure. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1377.40
Sale Price
$1147.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman LWC252015SS INLINE Stainless Steel Window Enclosure Aesthetic styling, flush latches and an attractive, stroked finish make INLINE Enclosures an excellent choice when style and functionality are important. INLINE Enclosures have an outward formed body flange to prevent contaminants from entering the enclosure and are available in three cover styles: hinged window door, hinged solid door and solid screw cover.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Door Type
Window
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
8"
Line
Inline
Enclosure Mount Type
Wall Mount
Enclosure Height
10"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Enclosure Lock Type
Keylock
Features
Seamless foam-in-place gasket
Large perimeter body opening
Fastening holes in back of body for direct mounting or optional external mounting brackets
M6 bonding provision on cover, M6 ground stud in body
External formed body flange trough
Seams continuously welded and ground smooth
Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Downloads
Hoffman LWC252015SS 2D DXF CAD.zipHoffman LWC252015SS 3D STEP CAD.zipHoffman LWC252015SS CAD Drawing.zipHoffman LWC252015SS CSA Certification.pdfHoffman LWC252015SS Declaration of Compliance.pdfHoffman LWC252015SS Dimension Drawing.gifHoffman LWC252015SS EU Certification.pdfHoffman LWC252015SS Instruction Manual.pdfHoffman LWC252015SS Spec Sheet.pdfHoffman LWC252015SS UL Certification.pdf
