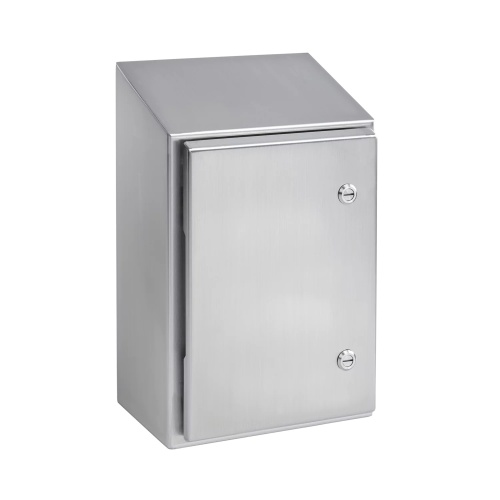

nVent Hoffman WS242408SS WATERSHED Stainless Steel Enclosure
Normally In Stock
Code: 4326
nVent Hoffman WS242408SS WATERSHED Enclosure Stainless Steel 24 x 24 x 8 inch (HxWxD) WATERSHED Type 4X 304 Stainless Steel with stainless steel lift-off bullet-style hinges and Stainless steel quarter-turn latches furnished with flush slotted insert. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3246.00
Sale Price
$2705.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman WS242408SS WATERSHED Stainless Steel Enclosure
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Lock Type
Padlocking
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
24"
Line
Watershed
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
Hinges are shielded by door
Hinged side of door has provisions to allow direct flushing of hinge area
97-degree door opening
Smooth Type 304 stainless steel lift-off bullet-style hinges
Seams continuously welded and ground smooth
Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
Self-grounding latch system with double seal
Seamless foam-in-place gasket
Stainless steel quarter-turn latches furnished with flush slotted insert
Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
Bonding provision on door, grounding stud on body
Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels, models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
Downloads
Hoffman WS242408SS 2D DXF CAD.zipHoffman WS242408SS 3D STEP CAD.zipHoffman WS242408SS CAD Drawing.zipHoffman WS242408SS Declaration of Compliance.pdfHoffman WS242408SS Dimension Drawing.gifHoffman WS242408SS EU Certification.pdfHoffman WS242408SS Instruction Manual.pdfHoffman WS242408SS Spec Sheet.pdfHoffman WS242408SS UL Certification.pdfHoffman WS242408SS User Manual.pdf
