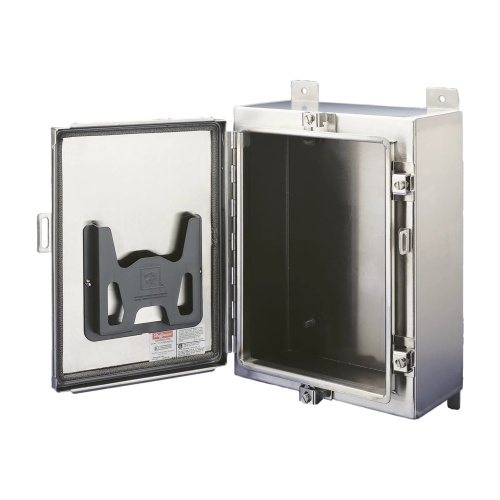

nVent Hoffman A242408LPEMCSS EMC Stainless Steel Enclosure
Normally In Stock
Code: 4194
nVent Hoffman A242408LPEMCSS Enclosure Stainless Steel 24 x 24 x 8 inch (HxWxD) Type 4X 304 Stainless Steel EMC Enclosure with continuous hinge and Stainless steel door clamp assembly. Hasp and staple for padlocking. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4919.51
Sale Price
$4099.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A242408LPEMCSS EMC Stainless Steel Enclosure Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.
Specifications
Enclosure Depth
8"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Latch Type
Clamp
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
24"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Stainless steel door clamp assemblies
Seamless foam-in-place gasket adjacent to woven model EMC mesh gasket
Rolled lip around three sides of door
Hasp and staple for padlocking
Seams continuously welded and ground smooth
EMC design helps contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
Removable door with continuous hinge
Bonding provision on door, grounding stud on body
Collar studs provided for mounting optional panels
Data pocket is high impact thermoplastic
Downloads
Hoffman A242408LPEMCSS 2D DXF CAD.zipHoffman A242408LPEMCSS 3D STEP CAD.zipHoffman A242408LPEMCSS CAD Drawing.zipHoffman A242408LPEMCSS Declaration of Compliance.pdfHoffman A242408LPEMCSS Dimension Drawing.gifHoffman A242408LPEMCSS Enclosure Alterations Manual.pdfHoffman A242408LPEMCSS Enclosure Repainting Instructions.pdfHoffman A242408LPEMCSS EU Certification.pdfHoffman A242408LPEMCSS Grounding Kit Instructions.pdfHoffman A242408LPEMCSS NEMA A302408LPEMCSS Shielding Effectiveness Chart.gifHoffman A242408LPEMCSS Spec Sheet.pdfHoffman A242408LPEMCSS UL Certification.pdfHoffman A242408LPEMCSS CAD Drawing.zipHoffman A242408LPEMCSS Enclosure Repainting Instructions.pdfHoffman A242408LPEMCSS Grounding Kit Instructions.pdfHoffman A242408LPEMCSS Spec Sheet.pdf
