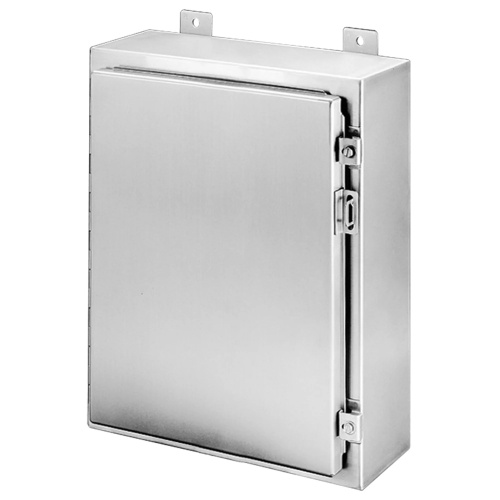

nVent Hoffman A30H2410SSLP Stainless Steel Enclosure
Normally In Stock
Code: 4161
nVent Hoffman A30H2410SSLP Enclosure Stainless Steel 30 x 24 x 10 inch (HxWxD) Type 4X 304 Stainless Steel Enclosure with continuous hinge and Stainless steel door clamp assembly. Hasp and staple for padlocking. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3903.41
Sale Price
$3252.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A30H2410SSLP Stainless Steel Enclosure For use in indoor and outdoor corrosive environments that require a water-tight seal, this enclosure',s seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
10"
Enclosure Lock Type
Padlocking
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
30"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Latch Type
Screw
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Hasp and staple for padlocking
Rolled lip around three sides of door
Stainless steel door clamp assembly
Door removed by pulling stainless steel continuous hinge pin
Seamless foam-in-place gasket
Seams continuously welded and ground smooth
Data pocket is high-impact thermoplastic
Bonding provision on door, grounding stud on body
Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
Collar studs provided for mounting optional panels
Downloads
Hoffman A30H2410SSLP 2D DXF CAD.zipHoffman A30H2410SSLP 3D STEP CAD.zipHoffman A30H2410SSLP CAD Drawing.zipHoffman A30H2410SSLP CSA Certification.pdfHoffman A30H2410SSLP Declaration of Compliance.pdfHoffman A30H2410SSLP Dimension Drawing.gifHoffman A30H2410SSLP Enclosure Alterations Manual.pdfHoffman A30H2410SSLP EU Certification.pdfHoffman A30H2410SSLP Spec Sheet.pdfHoffman A30H2410SSLP UL Certification.pdfHoffman A30H2410SSLP User Manual.pdf
