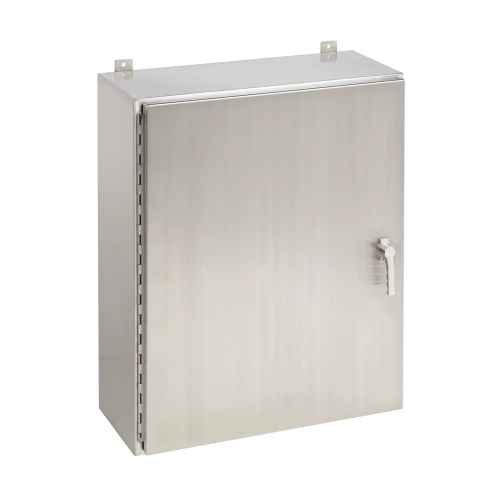

nVent Hoffman A24H2010SSLP3PT Stainless Steel Enclosure
Normally In Stock
Code: 4077
nVent Hoffman A24H2010SSLP3PT Enclosure Stainless Steel 24 x 20 x 10 inch (HxWxD) Type 4X 304 Stainless Steel Enclosure with continuous hinge and 3-point latch and Type 316L stainless steel padlocking POWERGLIDE Handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3233.39
Sale Price
$2694.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A24H2010SSLP3PT Stainless Steel Enclosure These two-door enclosures provide industry-leading protection for large components or complex mounting configurations in highlycorrosive environments. Three-point latching with the nVent Hoffman PowerGlide padlocking handles and a foam-in-place gasket combine convenience with security. They are well-suited for use in petrochemical plants, pulp and paper processing, water treatment facilities, and food, pharmaceutical and packaging applications.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
10"
Enclosure Lock Type
Padlocking
Enclosure Composition
304 Stainless Steel
Enclosure Latch Type
3 Point
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
20"
Enclosure Height
24"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Remove door by pulling stainless steel continuous hinge pin
Rolled lip around three sides of door
Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
Data pocket is high-impact thermoplastic
Seamless foam-in-place gasket
Seams continuously welded and ground smooth
Collar studs provided for mounting optional panels
Bonding provision on door, grounding stud on body
Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
Downloads
Hoffman A24H2010SSLP3PT 2D DXF CAD.zipHoffman A24H2010SSLP3PT 3D STEP CAD.zipHoffman A24H2010SSLP3PT CAD Drawing.zipHoffman A24H2010SSLP3PT Declaration of Compliance.pdfHoffman A24H2010SSLP3PT Dimension Drawing.gifHoffman A24H2010SSLP3PT Enclosure Alterations Manual.pdfHoffman A24H2010SSLP3PT EU Certification.pdfHoffman A24H2010SSLP3PT Spec Sheet.pdfHoffman A24H2010SSLP3PT UL Certification.pdfHoffman A24H2010SSLP3PT User Manual.pdf
