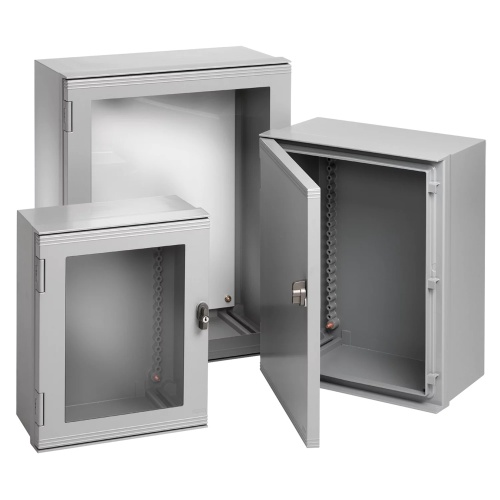

nVent Hoffman UU1008030 ULTRX Non-Metallic Fiberglass Enclosure
Normally In Stock
Code: 4005
nVent Hoffman UU1008030 ULTRX Enclosure 39.68 x 31.81 x 12.64 inch (HxWxD) ULTRX Type 4x Fiberglass Enclosure hinged with Type 316 stainless steel quarter-turn latch. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2826.13
Sale Price
$2355.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman UU1008030 ULTRX Enclosure 39.68 x 31.81 x 12.64 inch (HxWxD) ULTRX Type 4x Fiberglass Enclosure hinged with Type 316 stainless steel quarter-turn latch.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
White
Enclosure Depth
12"
Enclosure Interior Color
Gray
Enclosure Lock Type
Keylocking
Enclosure Composition
Fiberglass
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
31.5"
Line
Ultrx
Enclosure Height
39.5"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Molded-in drip shields are standard with each enclosure
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Enclosure may be rotated 180 degrees for left and right hinging
Impact-resistant polycarbonate window is permanently bonded in place
Fiberglass is easily punched, drilled, filed or sawed
Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
Optional keylocking or padlocking handle available
Type 316 stainless steel quarter-turn latch
Door hinges are replaceable
Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
Molded-in DIN bosses
Molded bosses on door provide additional mounting provisions
Optional data pocket is high-impact thermoplastic
Integral mounting rails provide infinite panel adjustment front to back
Downloads
Hoffman UU1008030 2D DXF CAD.zipHoffman UU1008030 3D STEP CAD.zipHoffman UU1008030 CAD Drawing.zipHoffman UU1008030 CSA Certification.pdfHoffman UU1008030 Declaration of Compliance.pdfHoffman UU1008030 EU Certification.pdfHoffman UU1008030 Instruction Manual.pdfHoffman UU1008030 Prop 65 FAQ.pdfHoffman UU1008030 Prop 65 Notification.pdfHoffman UU1008030 Spec Sheet.pdfHoffman UU1008030 UL Certification.pdfHoffman UU1008030 User Manual.pdf
