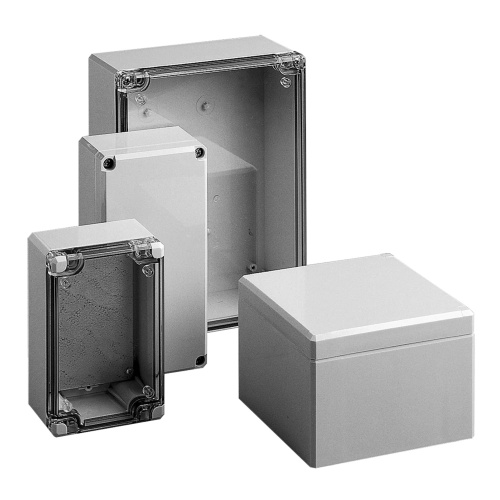

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
nVent Hoffman Q302311ABDCC QLINE D Non-Metallic Clear ABS Enclosure
Normally In Stock
Code: 3842
nVent Hoffman Q302311ABDCC Enclosure 11.54 x 8.78 x 4.09 inch (HxWxD) ABS QLINE D Type 4x Clear Enclosure with Screw Cover. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$175.93
Sale Price
$146.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman Q302311ABDCC Enclosure 11.54 x 8.78 x 4.09 inch (HxWxD) ABS QLINE D Type 4x Clear Enclosure with Screw Cover.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Composition
ABS
Enclosure Depth
4.37"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
12"
Enclosure Height
9"
Line
Qline
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Enclosure NEMA Rating
NEMA Type 6
Manufacturer
Hoffman
Features
Cross-point captivated cover screws are stainless steel
Polycarbonate material is easily punched, drilled, filed or sawed
Straight side walls permit ganging of multiple enclosures
Mounting holes molded directly adjacent to cover screws
Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
Cover screws protected by removable caps that are aesthetic and provide tamper resistance
Screws provided for mounting optional panel
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Panel mounting feature on both body and cover
Molded internal pads for mounting optional panels, rails and other components
Material is halogen free
Downloads
Hoffman Q302311ABDCC 2D DXF CAD.zipHoffman Q302311ABDCC 3D STEP CAD.zipHoffman Q302311ABDCC CAD Drawing.zipHoffman Q302311ABDCC CSA Certification.pdfHoffman Q302311ABDCC Declaration of Compliance.pdfHoffman Q302311ABDCC EU Certification.pdfHoffman Q302311ABDCC Spec Sheet.pdfHoffman Q302311ABDCC UL Certification.pdf
