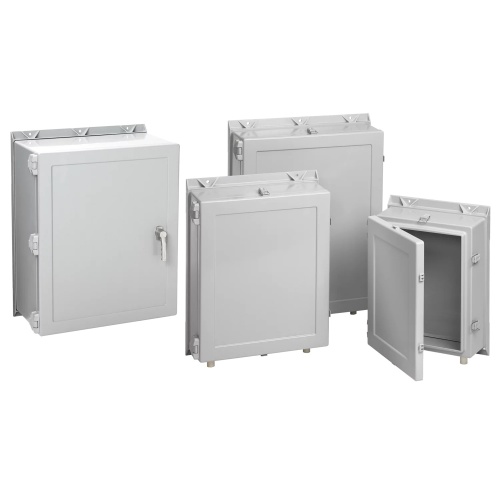

nVent Hoffman A30H2420GQRLP Non-Metallic Fiberglass Enclosure
Normally In Stock
Code: 3701
nVent Hoffman A30H2420GQRLP Enclosure 30.25 x 24.25 x 20.00 inch (HxWxD) Type 4X Fiberglass Enclosure hinged with fiberglass-reinforced polyester Quick-release latches with integral Type 316L stainless steel padlocking hasp. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3303.65
Sale Price
$2753.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A30H2420GQRLP Enclosure 30.25 x 24.25 x 20.00 inch (HxWxD) Type 4X Fiberglass Enclosure hinged with fiberglass-reinforced polyester Quick-release latches with integral Type 316L stainless steel padlocking hasp.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Depth
20"
Enclosure Composition
Fiberglass
Enclosure Latch Type
3 Point
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
30"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Gasket assures water-tight and dust-tight seal
Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
Seams are sealed, no holes or knockouts
Fiberglass material is easily punched, drilled, filed or sawed
Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
Data pocket is high-impact thermoplastic
Copper-flashed steel collar studs for mounting optional panels and terminal block kits
Downloads
Hoffman A30H2420GQRLP 2D DXF CAD.zipHoffman A30H2420GQRLP 3D STEP CAD.zipHoffman A30H2420GQRLP CAD Drawing.zipHoffman A30H2420GQRLP Declaration of Compliance.pdfHoffman A30H2420GQRLP Dimension Drawing.gifHoffman A30H2420GQRLP EU Certification.pdfHoffman A30H2420GQRLP Spec Sheet.pdfHoffman A30H2420GQRLP UL Certification.pdfHoffman A30H2420GQRLP User Manual.pdf
