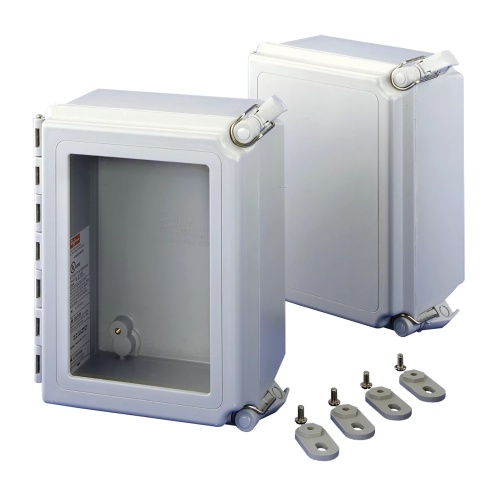

nVent Hoffman A864CHSCFGW Non-Metallic Window Fiberglass Enclosure
Normally In Stock
Code: 3630
nVent Hoffman A864CHSCFGW Enclosure 8 x 6 x 4 inch (HxWxD) Type 4X Fiberglass Window Enclosure with continuous hinge with two captivated Type 316 stainless steel slotted cover screws. Fiberglass is easily punched, drilled, filed or sawed. The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$263.51
Sale Price
$219.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A864CHSCFGW Enclosure 8 x 6 x 4 inch (HxWxD) Type 4X Fiberglass Window Enclosure with continuous hinge with two captivated Type 316 stainless steel slotted cover screws. Fiberglass is easily punched, drilled, filed or sawed. The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing.
Specifications
Enclosure Depth
4"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Door Type
Window
Enclosure Composition
Fiberglass
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
6"
Enclosure Height
8"
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Scratch-resistant polycarbonate windows are permanently bonded in place
Gasket assures water-tight and dust-tight seal
Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
Fiberglass is easily punched, drilled, filed or sawed
Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
Removable hinged cover attached to body with Type 316 stainless steel hinge pin
Padlock provisions included
Hinge pin and bail are corrosion-resistant Type 316 stainless steel
Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
Material is halogen-free
Downloads
Hoffman A864CHSCFGW 2D DXF CAD.zipHoffman A864CHSCFGW 3D STEP CAD.zipHoffman A864CHSCFGW CAD Drawing.zipHoffman A864CHSCFGW Declaration of Compliance.pdfHoffman A864CHSCFGW EU Certification.pdfHoffman A864CHSCFGW Instruction Manual.pdfHoffman A864CHSCFGW Prop 65 FAQ.pdfHoffman A864CHSCFGW Prop 65 Notification.pdfHoffman A864CHSCFGW Spec Sheet.pdfHoffman A864CHSCFGW UL Certification.pdfHoffman A864CHSCFGW User Manual.pdf
