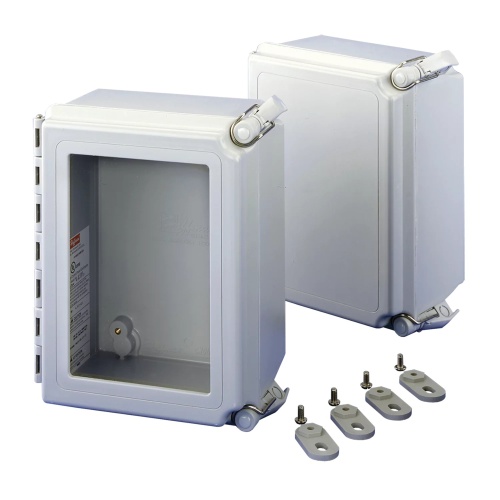

nVent Hoffman A664CHSCFG Non-Metallic Fiberglass Enclosure
Normally In Stock
Code: 3615
nVent Hoffman A664CHSCFG Enclosure 6 x 6 x 4 inch (HxWxD) Type 4X Fiberglass Enclosure with continuous hinge with two captivated Type 316 stainless steel slotted cover screws. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$156.73
Sale Price
$130.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A664CHSCFG Enclosure 6 x 6 x 4 inch (HxWxD) Type 4X Fiberglass Enclosure with continuous hinge with two captivated Type 316 stainless steel slotted cover screws.
Specifications
Enclosure Depth
4"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Composition
Fiberglass
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
6"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
6"
Enclosure Latch Type
Screw
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Scratch-resistant polycarbonate windows are permanently bonded in place
Gasket assures water-tight and dust-tight seal
Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
Fiberglass is easily punched, drilled, filed or sawed
Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
Removable hinged cover attached to body with Type 316 stainless steel hinge pin
Padlock provisions included
Hinge pin and bail are corrosion-resistant Type 316 stainless steel
Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
Material is halogen-free
Downloads
Hoffman A664CHSCFG 2D DXF CAD.zipHoffman A664CHSCFG 3D STEP CAD.zipHoffman A664CHSCFG CAD Drawing.zipHoffman A664CHSCFG Declaration of Compliance.pdfHoffman A664CHSCFG Dimension Drawing.gifHoffman A664CHSCFG EU Certification.pdfHoffman A664CHSCFG Instruction Manual.pdfHoffman A664CHSCFG Prop 65 FAQ.pdfHoffman A664CHSCFG Prop 65 Notification.pdfHoffman A664CHSCFG Spec Sheet.pdfHoffman A664CHSCFG UL Certification.pdfHoffman A664CHSCFG User Manual.pdf
