Code: 303928

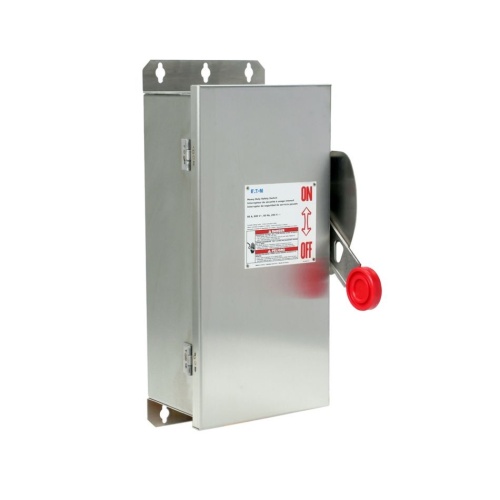

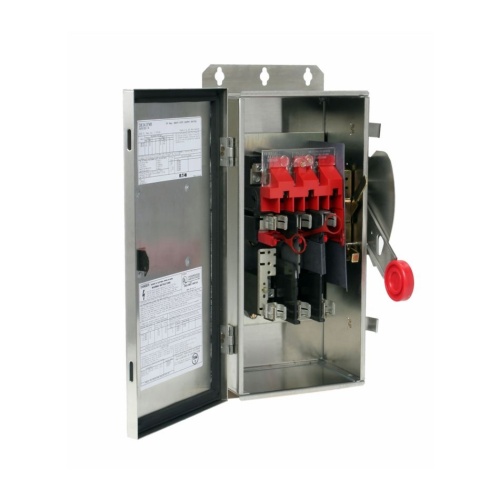

Eaton DH362FWK316 Heavy Duty Receptable Safety Switch - Fusible Without Neutral, 60 Amp
Normally In Stock
Eaton DH362FWK316 - 60 Amp - NEMA 4X - 480-600 VAC - Three Pole - 316 Stainless Steel - Class H fuses - 20-50 HP - 1/3PH - 8.5" x 9.5" x 20" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$8221.36
Sale Price
$6851.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH362FWK316 - Receptacle Switches are heavy-duty switches that come pre-wired and are interlocked with polarized receptacles designed for three-phase, three-wire, grounded type power plugs. The receptacles are integrated with the switch mechanisms to prevent the insertion or removal of power plugs when the switch is in the ON position. These switches are available in ratings from 30 to 100 A, operating at 600 Vac, and housed in NEMA 12/3R, 4X stainless steel enclosures. Power plugs are not included with the receptacle switches, but they can be equipped with viewing windows if desired. These switches are commonly used in portable power applications such as welders, infrared ovens, batch feeders, conveyors, truck and marine docks. They comply with UL 98 and NEMA standards and are UL listed with File No. E5239.
Specifications
Enclosure Composition
316 Stainless Steel
Enclosure NEMA Rating
NEMA 4X
Component
Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Height
8.5 In
Disconnect Enclosure Width
9.5 In
Disconnect Enclosure Depth
20 In
Enclosure Disconnect Type
Double Throw Quick Connect Safety Switch
Features
Fusible and non-fusible switches are 100% load break and 100% load make rated
Suitable for service entrance applications unless otherwise noted
Mechanically interlocked cover to prevent easy access when the switch is in the ON position
Visible ON/OFF indication
Available in 30 A–1200 A ratings
NEMA 1, 3R, 12, 4 and 4X enclosures for robust environmental protection
Standard NEC 230.62 (C) and UL 98 compliant line side barrier
Features optional viewing window that incorporates visible blade components
