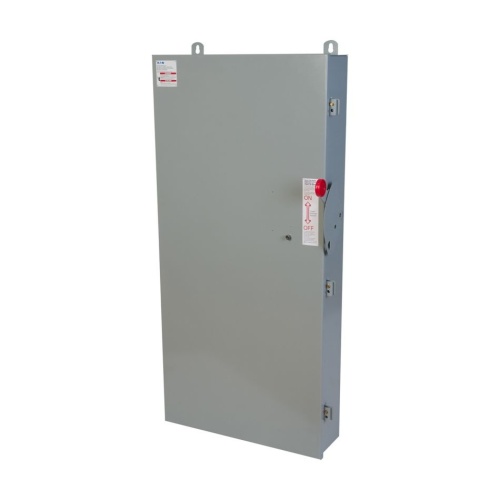

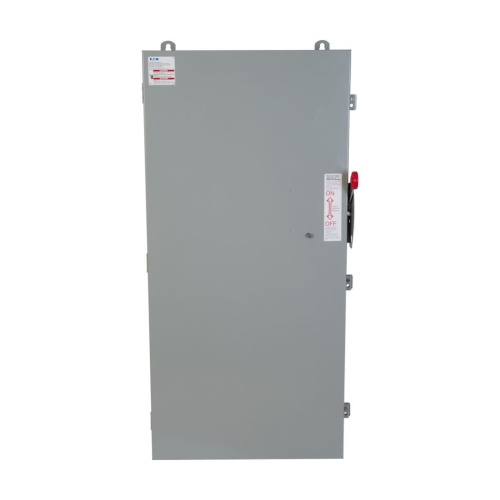

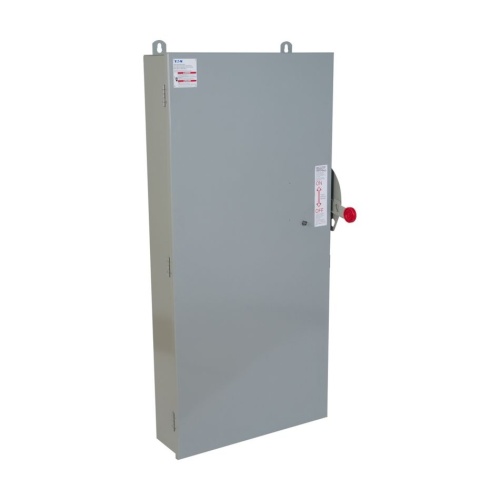

Eaton STS365ND3 Shunt Trip Safety Switch - Fusible With Neutral, 400 Amp
Normally In Stock
Code: 303703
Eaton STS365ND3 - 400 A - 1NO/1NC alarm switch only - Coil V: 120 Vac - NEMA 12/3R - 600 V - Three-pole - Fusible with neutral - 57.47" x 27.29" x 12.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$8136.88
Sale Price
$6780.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton STS365ND3 - The Shunt Trip Safety Switch is an electronic safety switch that allows remote operation for enhanced safety and productivity. It can be configured to meet various safety applications and is compatible with Eaton's standard heavy-duty safety switches. Available in ratings from 30 to 1200 A, it features visible blade indication, short-circuit ratings, and options for ground fault protection and arc energy reduction. The switch is suitable for industrial and commercial environments, passing Class 1 ground fault testing and providing overcurrent protection. It offers a cost-effective solution for high-interrupt applications and can be used in arc energy reduction, ground fault, remote opening, E-stop, safety interlocking, and machinery OEM interlocking applications.
Specifications
Enclosure NEMA Rating
NEMA 3R
Enclosure NEMA Rating
NEMA 12
Component
Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Depth
12.43 In
Disconnect Enclosure Height
57.47 In
Disconnect Enclosure Width
27.29 In
Enclosure Disconnect Type
Double Throw Quick Connect Safety Switch
Current
400 Amp
Voltage
1000 VDC
Features
Standard heavy-duty safety switch design with integrated shunt trip module
Integral arc energy reduction system available (NEC 240.67)
Integral ground fault protection available for 480 VAC service entrance applications (NEC 230.95)
Works with emergency stop pushbuttons and other remote signaling means to quickly disconnect power from equipment
Provides a safety switch solution for oil and gas, industrial plants, utilities, commercial construction and water and wastewater treatment applications
Includes two-, three- and four-pole configurations for maximum system voltages of 600 VAC with fusible and non-fusible protection options
Meets Underwriters Laboratories (UL) standards and is listed to the UL98 standard
Provides a variety of coil voltages, visible means of disconnect, and a standard heavy duty safety switch with integrated shunt trip module
Passes Class 1 ground fault testing (1200% opening)
