Code: 303318

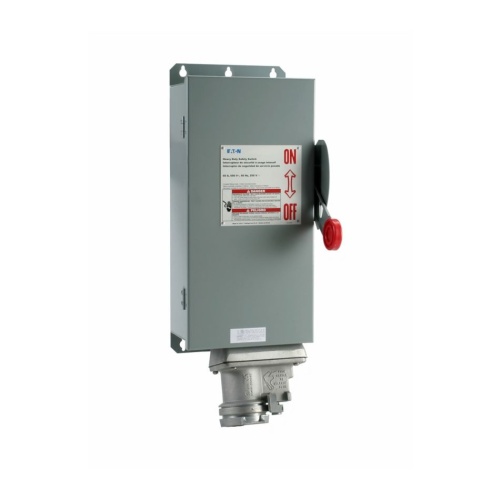

Eaton DH362FDK2WRW Heavy Duty Receptable Safety Switch - Fusible Without Neutral, 60 Amp
Normally In Stock
Eaton DH362FDK2WRW - 60 Amp - NEMA 12/3R - 480-600 VAC - Three Pole - Painted Steel - H fuses - 20-50 HP - 1/3PH - Crouse-Hinds®ARKTITE Receptacle - 10" x 13.75" x 30" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$6817.63
Sale Price
$5681.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DH362FDK2WRW - Receptacle Switches are heavy-duty switches that come pre-wired and are interlocked with polarized receptacles designed for three-phase, three-wire, grounded type power plugs. The receptacles are integrated with the switch mechanisms to prevent the insertion or removal of power plugs when the switch is in the ON position. These switches are available in ratings from 30 to 100 A, operating at 600 Vac, and housed in NEMA 12/3R, 4X stainless steel enclosures. Power plugs are not included with the receptacle switches, but they can be equipped with viewing windows if desired. These switches are commonly used in portable power applications such as welders, infrared ovens, batch feeders, conveyors, truck and marine docks. They comply with UL 98 and NEMA standards and are UL listed with File No. E5239.
Specifications
Enclosure Composition
Painted Steel
Enclosure NEMA Rating
NEMA 3R
Enclosure NEMA Rating
NEMA 12
Component
Fusible Disconnect Switch
Disconnect Enclosure Height
10 In
Manufacturer
Eaton
Disconnect Enclosure Depth
30 In
Disconnect Enclosure Width
13.75 In
Enclosure Disconnect Type
Single Throw Quick Connect Safety Switch
Features
Fusible and non-fusible switches are 100% load break and 100% load make rated
Suitable for service entrance applications unless otherwise noted
Mechanically interlocked cover to prevent easy access when the switch is in the ON position
Visible ON/OFF indication
Available in 30 A–1200 A ratings
NEMA 1, 3R, 12, 4 and 4X enclosures for robust environmental protection
Standard NEC 230.62 (C) and UL 98 compliant line side barrier
Features optional viewing window that incorporates visible blade components
