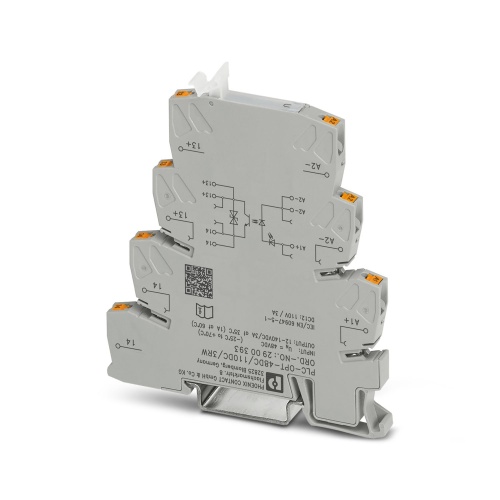

Phoenix Contact 2900393 Solid-state relay module PLC-OPT- 48DC/110DC/3RW
Normally In Stock
Code: 24547
Phoenix Contact 2900393 Miniature Solid State Relay PLC-OPT- 48DC/110DC/3RW online from authorized Phoenix Contact Replay distributor RSP Supply. Check stock and pricing, view product specifications, and order online.
Condition: New
Usually ships Same Day or Next Day $59.99
Sale Price
$49.99
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900393 A PLC-Interface designed for railway applications comprises a basic terminal block with push-in connections and an integrated solid-state relay. The unit's size ranges from 0.7 to 1.25 units and operates within temperatures of -25°C to +70°C. It features one N/O contact, accepts a 48V DC input, and produces outputs ranging from 12-140V DC with a maximum current of 3A.
Specifications
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Connection Type
Push-In Connection
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
5 Mamp
Coil Voltage Rating
48 Volt
Relay Application
Railway Input Function Output Function
Relay Load Voltage DC Rating
110 Volt
Features
Shock resistance in accordance with DIN 50155 (requirements in accordance with EN 61373)
Temperature range: -25 °C ... +70 °C
Input voltage range of 0.7 - 1.25 x UN
Downloads
Phoenix 2900393 Application Note English.pdfPhoenix 2900393 CAD data International.dxfPhoenix 2900393 CAD data International.pdfPhoenix 2900393 CAD data International.stpPhoenix 2900393 CAD Drawing.zipPhoenix 2900393 Circuit Diagram.jpgPhoenix 2900393 Manufacturers declaration English.pdfPhoenix 2900393 Manufacturers declaration International.pdfPhoenix 2900393 Package Slip International.pdfPhoenix 2900393 Package Slip.pdfPhoenix 2900393 Product Information English.pdfPhoenix 2900393 Spec Sheet.pdfPhoenix 2900393 Tender Text English.zip
