Code: 24375

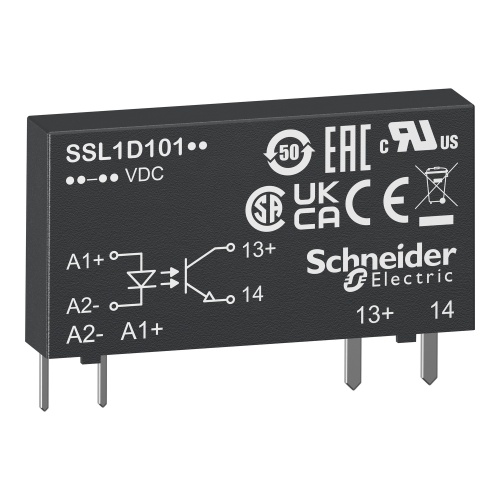

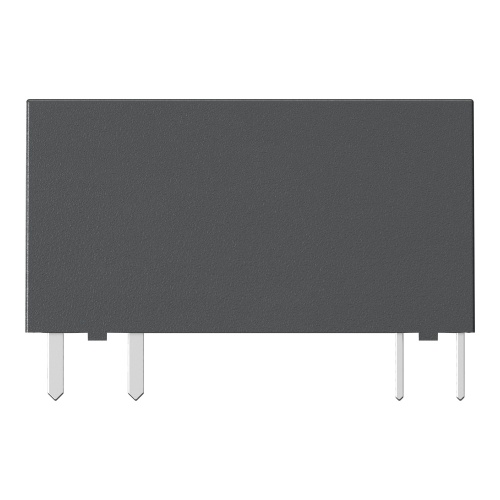

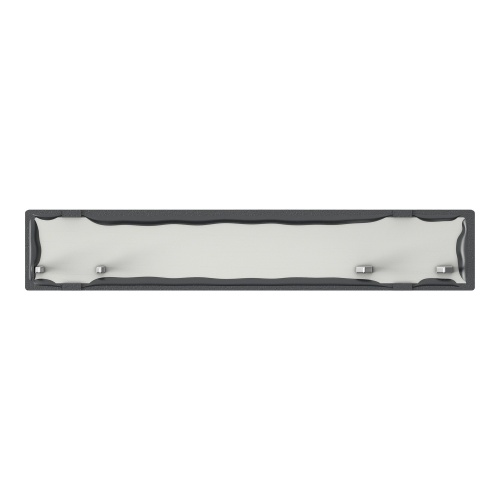

Schneider SSL1D101JD Solid State SSL Relay Plug In
Normally In Stock
Schneider SSL1D101JD Square D Solid State SSL Relay Plugin (DC Switching) with 3-12 VDC Input Coil Voltage and 1-48 VDC Output Load Voltage. .1 Amp Load Amperage, Single Pole Single Throw with1 Normally Open Contact. Plugin for din rail mount base (sold separately) (MUST BUY IN PACKS OF 12)
Condition: New
Usually ships Same Day or Next Day$15.36
Sale Price
$12.80
MUST BUY IN PACKS OF 12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Square D SSL1D101JD Solid State SSL Relay Plugin 3-12 VDC Input Coil Voltage and 1-48 VDC Output Load Voltage with .1 Amp Load Amperage, SPST Normally Open. Compact size modular design used with din rail mount base. Socket has reverse polarity protection and LED indication for control status and id.
Specifications
Relay Switching
DC Switching
Relay Mounting
Socket
Relay Poles
Single Pole
Component
Relay Module-Solid State
Manufacturer
Schneider Electric
Relay Throws
Single Throw Normally Open
Coil Voltage Rating
3 Volt
Coil Voltage Max
12 Volt
Relay Load Amperage
0.1 Amp @ 48 Volt
Relay Load Voltage AC Phase
Single Phase
Features
Experience high switching frequency for precise and quick control, long lifetime, and silent operation with Harmony Solid State Relays (SSR).
Wide choice of relays from slim interface, DIN-rail, and panel mount, single-phase and three-phase options, and current ratings from 0.1 A to 125 A. Formerly known as Zelio Solid State Relay range
