Code: 24302

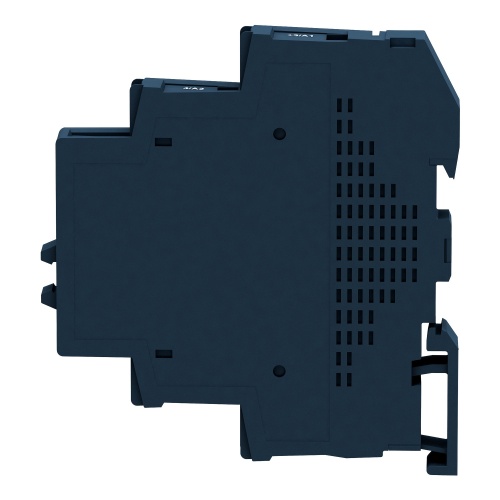

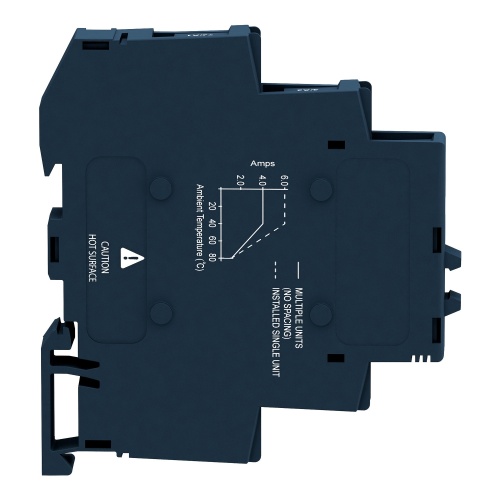

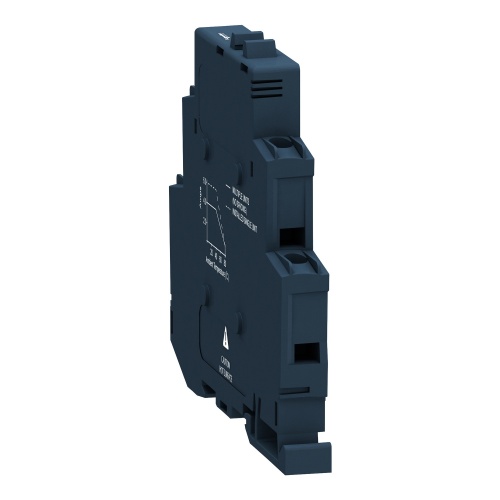

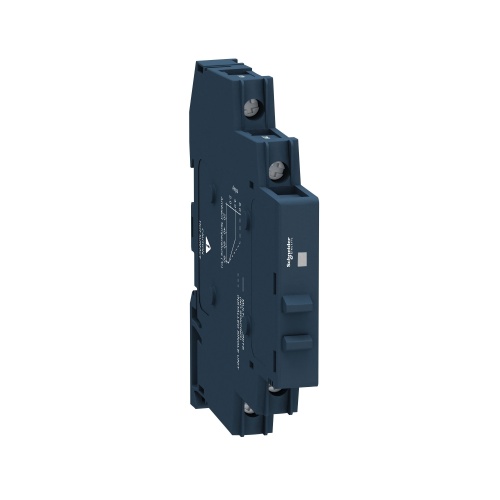

Schneider SSM1D26BD Solid State SSM Relay
Normally In Stock
Schneider SSM1D26BD Square D Solid State SSM Relay (DC Switching) with 4-32 VDC Input Coil Voltage and 1-60 VDC Output Load Voltage. 6 Amp Load Amperage, Single Pole Single Throw with1 Normally Open Contact. Din rail mounted with screw connections.
Condition: New
Usually ships Same Day or Next Day$47.53
Sale Price
$39.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Square D SSM1D26BD Solid State SSM Din rail mount Relay 4-32 VDC Input Coil Voltage and 1-60 VDC Output Load Voltage with 6 Amp Load Amperage, SPST Normally Open. With no exposed metal surfaces and integrated heat sync.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Relay Switching
DC Switching
Relay Poles
Single Pole
Component
Relay Module-Solid State
Manufacturer
Schneider Electric
Relay Throws
Single Throw Normally Open
Coil Voltage Max
32 Volt
Relay Load Amperage
6 Amp @ 60 Volt
Relay Load Voltage AC Phase
Single Phase
Coil Voltage Rating
4-6 Volt
Features
Built-in heatsink for maximum performance and less spare parts to manage
Silent and reliable due to the absence of moving contacts
Resistant to shocks, vibration and pollution, which makes it ideal for harsh industrial environments
Helps reduce your maintenance and downtime costs
Visual indicator LED for a simpler troubleshooting and commissioning
