Phoenix Contact 1110984 Electronic circuit breaker CAPAROC E2 12-24DC/2-10A
Normally In Stock
Code: 240879
CAPAROC E2 12-24DC/2-10A Phoenix Contact 1110984 Electronic circuit breaker - CAPAROC E2 12-24DC/2-10A
Condition: New
Usually ships within 7-14 days. Call for ship time$99.72
Sale Price
$83.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

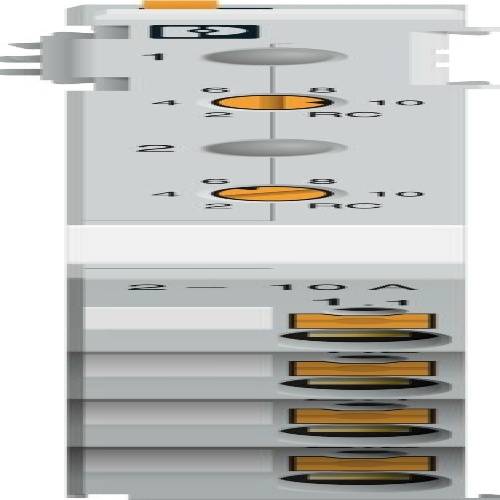

Phoenix Contact 1110984 A two-channel electronic circuit breaker module designed for protection of DC loads at 12 and 24V, it prevents overloads and short circuits with a current limit feature that can be adjusted from 2A to 10A using a step switch. This module is ideal for DIN rail installation via CAPAROC's current rails.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
2 Amp
Breaker Amperage Rating
10 Amp
Breaker Voltage Rating
24 VDC
Manufacturer
Phoenix Contact
Breaker Voltage Rating
12 VDC
Component
Electronic Circuit Breaker
Features
The benchmark that you can customize with convenient nominal current level setting on the module
Easy operation for everyone through tool-free assembly, uninterrupted installation, and transparent operating state
Exceptionally easy design-in allows the nominal current to be extended beyond the specified levels via PROFINET
