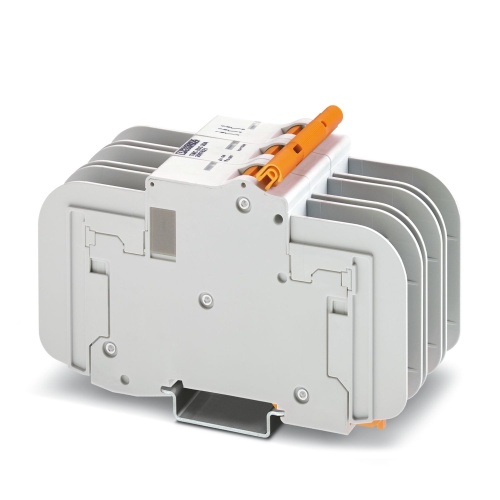

Phoenix Contact 2907683 Miniature Circuit Breaker TMC 83D 08A
Normally In Stock
Code: 23655
Phoenix Contact 2907683 Breaker TMC 83D 08A
Condition: New
Usually ships Same Day or Next Day$75.32
Sale Price
$62.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

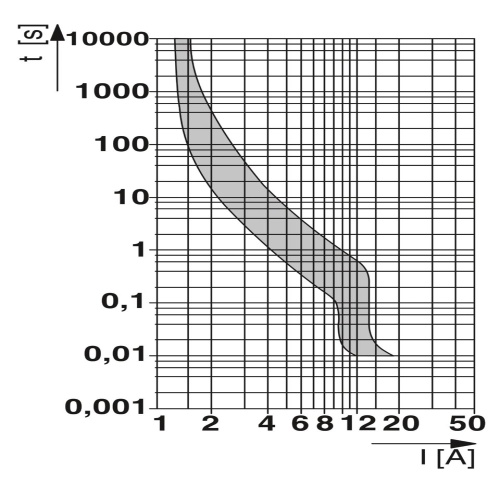

Phoenix Contact 2907683 The Thermal-magnetic Miniature Circuit Breaker is designed for branch circuit protection and has a breaking capacity of 10 kiloamperes, with a tripping characteristic that follows the curve D. It can be mounted in a type NS 35... configuration and operates within a rated current of 8 amps.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker Amperage Rating
8 Amp
Breaker Switching Type
Thermomagnetic
Breaker UL Rating
UL 489 Listed
Breaker Number of Poles
Three Pole
Breaker Trip Speed
Slow Trip
Breaker Protection For
High Inrush Current
Breaker Overcurrent Protection Rating
D Curve 10-14 X Amp Rating
Breaker Unit
Complete Unit
Breaker Voltage Rating
240 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 2907683 CAD data International.stpPhoenix 2907683 CAD data International.wrlPhoenix 2907683 Data Sheet English.pdfPhoenix 2907683 Flyer English.pdfPhoenix 2907683 Manufacturers declaration International.pdfPhoenix 2907683 Spec Sheet.pdfPhoenix 2907683 Tender Text English.zipPhoenix 2907683 User Manual.pdfPhoenix 2907683 Various English.pdf
