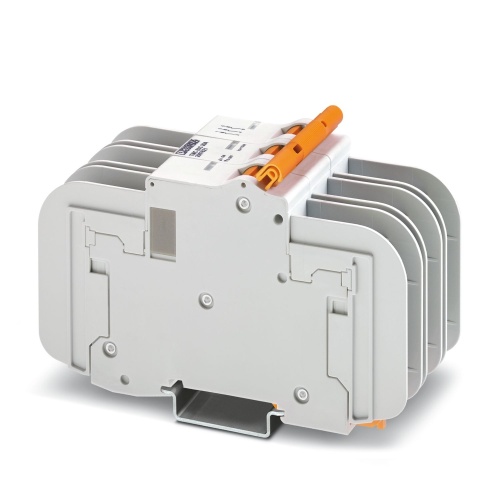

Phoenix Contact 2907615 Miniature Circuit Breaker TMC 83C 10A
Normally In Stock
Code: 23639
Phoenix Contact 2907615 Breaker TMC 83C 10A
Condition: New
Usually ships Same Day or Next Day$75.32
Sale Price
$62.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907615 The Thermal-magnetic Miniature Circuit Breaker is designed to protect branch circuits, offering protection against overload and having a breaking capacity of 10 kiloamperes. This device features a tripping characteristic of class C and can be mounted using the NS 35/... mounting type, with a rated current of 10 amps.
Specifications
Breaker Type
Supplementary Breaker
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker Amperage Rating
10 Amp
Breaker Switching Type
Thermomagnetic
Breaker UL Rating
UL 489 Listed
Breaker Trip Speed
Normal Trip
Breaker Protection For
All Application Types
Breaker Overcurrent Protection Rating
C Curve 7-10 X Amp Rating
Breaker Number of Poles
Three Pole
Breaker Unit
Complete Unit
Breaker Voltage Rating
240 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 2907615 CAD data International.stpPhoenix 2907615 CAD data International.wrlPhoenix 2907615 Data Sheet English.pdfPhoenix 2907615 Flyer English.pdfPhoenix 2907615 Manufacturers declaration International.pdfPhoenix 2907615 Spec Sheet.pdfPhoenix 2907615 Tender Text English.zipPhoenix 2907615 User Manual.pdfPhoenix 2907615 Various English.pdf
