Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

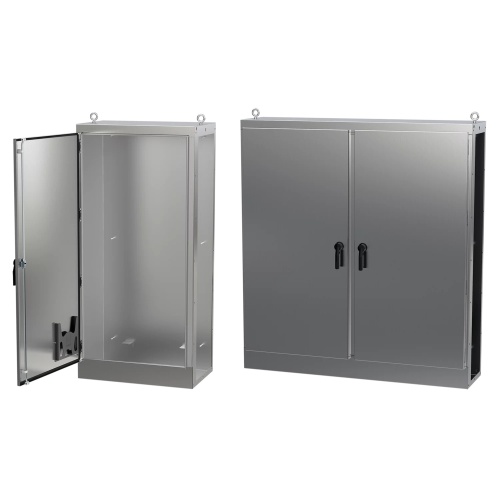

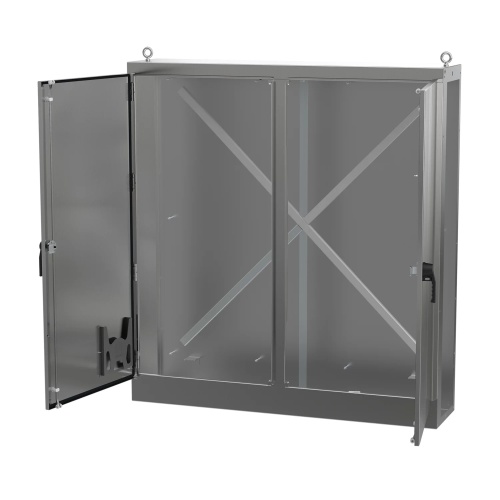

nVent Hoffman AU72X7818RSSLP Universal Free-Stand Right Side Open, 72.13x77.99x18.11, Stainless Steel 304
Normally In Stock
Code: 231969
nVent Hoffman AU72X7818RSSLP
Seams are continuously welded and ground smooth
Body stiffeners in larger enclosures for extra rigidity
Body flange trough excludes liquids and contaminants
Heavy-duty lifting eyes anchor into reinforced top
Concealed, easy-to-remove hinges
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Order panels separately
Data pocket is high-impact thermoplastic
Oil-resistant door gasket
Bonding provision on door
Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
Note: Sequestr solutions are compatible with Universal Free-Stand enclosures; reference Sequestr spec sheets and installation instructions for more details
Condition: New
Usually ships Same Day or Next Day$29480.82
Sale Price
$24567.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman AU72X7818RSSLP
Seams are continuously welded and ground smooth
Body stiffeners in larger enclosures for extra rigidity
Body flange trough excludes liquids and contaminants
Heavy-duty lifting eyes anchor into reinforced top
Concealed, easy-to-remove hinges
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Order panels separately
Data pocket is high-impact thermoplastic
Oil-resistant door gasket
Bonding provision on door
Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
Note: Sequestr solutions are compatible with Universal Free-Stand enclosures; reference Sequestr spec sheets and installation instructions for more details
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
72.13"
Enclosure Depth
18.11"
Enclosure Width
77.99"
Component
Modular Enclosure Package
Enclosure Door Type
Solid
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Concealed, easy-to-remove hinges
Body flange trough excludes liquids and contaminants
Heavy-duty lifting eyes anchor into reinforced top
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Body stiffeners in larger enclosures for extra rigidity
Seams are continuously welded and ground smooth
Order panels separately
Mechanical interlock standard on each enclosure, parts required to connect interlock system between adjacent enclosures are provided
Bonding provision on door
Oil-resistant door gasket
Data pocket is high-impact thermoplastic
Note: Sequestr solutions are compatible with Universal Free-Stand enclosures, reference Sequestr spec sheets and installation instructions for more details
