Code: 22410

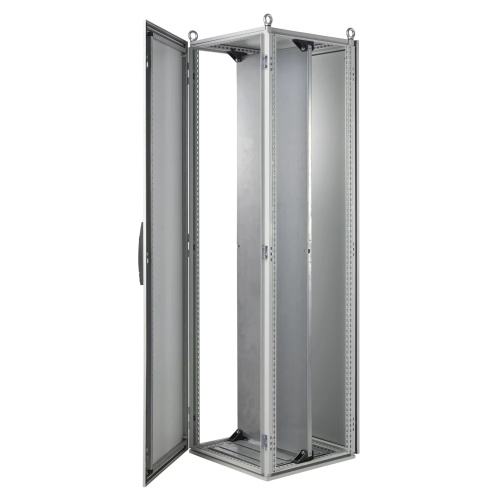

nVent Hoffman P2K1085 PROLINE G2 Modular Enclosure Package
nVent Hoffman P2K1085 39.45"x31.8"x19.88" Type 12 Indoor Free Standing Modular Enclosure Solutions
Condition: New
Usually ships Same Day or Next Day$2821.56
Sale Price
$2351.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2K1085 PROLINE G2 Modular Enclosure Package PROLINE G2 Industrial Packages are full-featured, ready-to-use enclosure solutions that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid door(s), handle and key lock, a solid top, a solid rear cover, a full mounting subpanel, a gland plate, and four lifting eyes. Side covers ordered separately to accommodate joining-baying applications.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure Hinge Type
Standard Hinge
EMC Enclosure
EMC Enclosure
Enclosure Depth
20"
Console Enclosures
Console Enclosure
Enclosure Mount Type
Free-Standing
Freestanding Enclosure Base Type
Floor Mount
Line
PROLINE G2
Enclosure Width
31.75"
Enclosure Height
39.5"
Component
Modular Enclosure Package
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Enclosure Lock Type
Keylock
Enclosure Latch Type
3-Point
Features
Door bar system present on all doors (including window doors)
Enclosures with a width of 1200mm or less have a single-piece rear cover, and can accommodate a fully-recessed mounting subpanel, enclosures with a width of greater than 1200mm have two rear covers that affix to a removable center upright/vertical combination, and can accommodate a mounting subpanel just front of fully-recessed position
Gasket is seamless polyurethane providing a water-tight, dust-tight seal against moisture and contaminants, UL component recognized, CSA compliant
Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height, system ensures a solid and repeatable seal with a low closure force
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
Galvanized Duro-Stand Gland Plate present
Low-Profile Flush Swing Handle with key lock on standard versions, double bit lock on 'E' versions, other handle options available (sold separately)
Two grounding studs present on each door
Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
Mounting subpanel includes EZ-Load Glide Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame), Subpanel is securely fastened to the top and bottom of the frame.
Enclosures <1200 mm use 4 sets of EZ-Load Glide Blocks, enclosures ≥1200 mm use 8 sets of glide blocks for a well-secured subpanel
Refer to separate specifications for more complete details of individual components
Note that side covers are sold separately
Galvanized, full-height subpanel is supplied standard, subpanel is depth adjustable, with back-to-back subpanel configuration possible, white painted subpanel available (sold separately)
Downloads
Hoffman P2K1085 2D DXF CAD.zipHoffman P2K1085 3D STEP CAD.zipHoffman P2K1085 Declaration of Compliance.pdfHoffman P2K1085 EU Certification.pdfHoffman P2K1085 Full Subpanel Instruction Manual.pdfHoffman P2K1085 Gland Plate Instruction Manual.pdfHoffman P2K1085 Instruction Manual.pdfHoffman P2K1085 Solid Cover Instruction Manual.pdfHoffman P2K1085 Spec Sheet.pdfHoffman P2K1085 Top Cover Instruction Manual.pdf
