Code: 20746

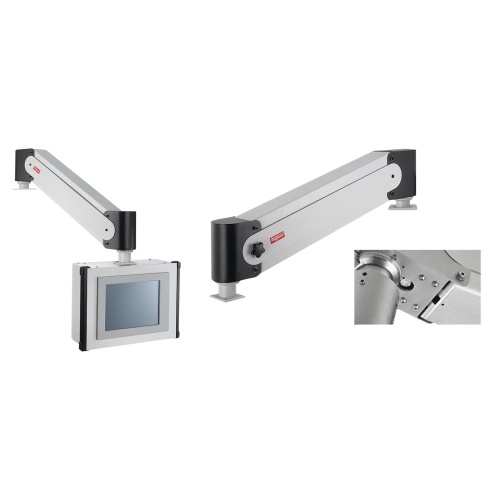

nVent Hoffman VHD36 SYSPEND VHD 36" Motion Arm Pendant Arm
nVent Hoffman VHD36 SYSPEND VHD 36" Motion Arm Pendant Arm
Condition: New
Usually ships Same Day or Next Day$5845.50
Sale Price
$4871.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman VHD36 SYSPEND VHD 36" Motion Arm Pendant Arm
Specifications
Pendant Arm Component Mounting
Arm To Tube
Pendant Arm Component NEMA Rating
Type 4
Pendant Arm Component Composition
Steel
Pendant Arm Component NEMA Rating
Type 12
Component
Arm System
Line
SYSPEND VHD
Pendant Arm Component Rotation
330 Degrees
Manufacturer
Hoffman
Pendant Arm Component Load Rating
25-75 Lbs.
Features
Tension adjustment at front of the arm provides additional fine-tuning of lifting force
Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
Angle of gas springs is adjustable (not the pressure), allows lifting force to be increased or decreased at any time for changes in load
Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
Optional floorpost available
Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
Gasketed mounting surfaces at both ends of arm maintain seal integrity
