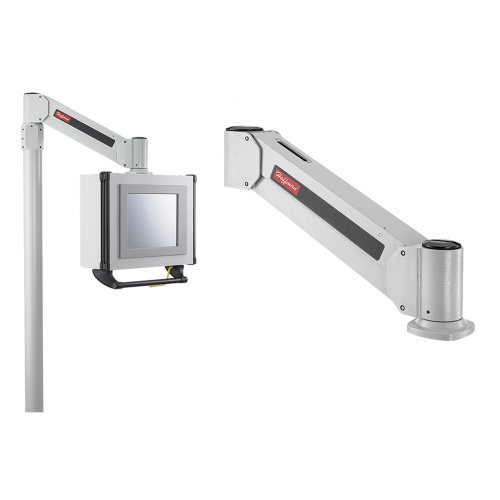

nVent Hoffman VL22 SYSPEND VL 22" Motion Arm Pendant Arm
Normally In Stock
Code: 20738
nVent Hoffman VL22 SYSPEND VL 22" Motion Arm Pendant Arm for HMI enclosure. 6.72" x 25.5" x 3.5" (171 x 648 x 89 mm) Aluminum construction with light gray finish. Supports load of 30 to 100 lbs. Field adjustable gas spring counterbalance.
Condition: New
Usually ships Same Day or Next Day$3798.90
Sale Price
$3165.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman VL22 SYSPEND VL 22" Motion Arm Pendant Arm for HMI enclosure. 6.72" x 25.5" x 3.5" (171 x 648 x 89 mm) Aluminum construction with light gray finish. Supports load of 30 to 100 lbs. Field adjustable gas spring counterbalance.
Specifications
Pendant Arm Component Mounting
Arm To Tube
Pendant Arm Component Composition
Aluminum
Pendant Arm Component NEMA Rating
Type 4
Pendant Arm Component NEMA Rating
Type 12
Component
Arm System
Line
SYSPEND VL
Pendant Arm Component Load Rating
30-100 Lbs
Pendant Arm Component Rotation
320 Degrees
Manufacturer
Hoffman
Features
Release handle automatically locks arm in place when repositioned vertically
Lifting force cannot be increased once spring pressure is reduced
Provides 13 in. of vertical height adjustment
Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
Gas springs are set to maximum pressure (100 lb. load) and lifting force can be reduced through a sealed access cap in the top of the arm
Field-adjustable internal gas spring counterbalance supports loads of 30-100 lbs.
1.4-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
Optional floorpost available
Mounting adapter is required with options of wall-mount, machine-top-mount and post-top-mount
Enclosure and arm can be swiveled 320 degrees
Gasketed mounting surfaces at both ends of arm maintain seal integrity
