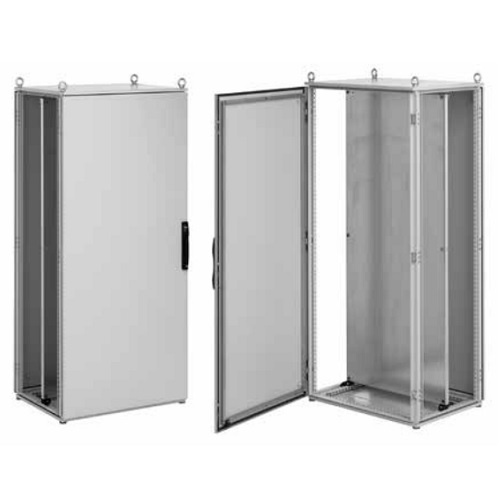

nVent Hoffman PPOD18105 PROLINE Industrial Modular Enclosure Package
Normally In Stock
Code: 16590
nVent Hoffman PPOD18105 70.87"x39.37"x19.69" Type 12 Indoor Free Standing Modular Enclosure Solutions
Condition: New
Usually ships Same Day or Next Day$4343.46
Sale Price
$3619.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman PPOD18105 PROLINE Industrial Modular Enclosure Package PROLINE Industrial Packages are full-featured, ready-to-use enclosure solutions that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid door(s), handle and key lock, a solid top, a solid rear cover, a full mounting subpanel, a gland plate, and four lifting eyes. Side covers are ordered separately to accommodate joining-baying applications.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure Hinge Type
Standard Hinge
EMC Enclosure
EMC Enclosure
Enclosure Lock Type
Keylocking
Enclosure Mount Type
Free-Standing
Freestanding Enclosure Base Type
Floor Mount
Enclosure Number of Doors
2 Door
Enclosure Height
71"
Enclosure Depth
19.75"
Enclosure Width
39.5"
Component
Modular Enclosure Package
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Line
PROLINE
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Reversible door, left hinged as a default, with 130-degree swing
Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
Gasket and latching system together ensure a solid seal with low closure force
Galvanized mounting plates
Standard door bars increase strength and rigidity and allow for an extra mounting options
Frames are roll-formed, robotically welded with solid steel, fully welded corners, accommodates 25 mm DIN standard
Capped ground studs on door, rear and top panel
Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel
Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
Integral frame channels support the full weight of the mounting plates
Rear panel and solid top 1.5 mm, carbon steel powder painted, RAL 7035
Downloads
Hoffman PPOD18105 2D DXF CAD.zipHoffman PPOD18105 3D STEP CAD.zipHoffman PPOD18105 Catalog (Europe only).pdfHoffman PPOD18105 CSA Certification.pdfHoffman PPOD18105 Declaration of Compliance.pdfHoffman PPOD18105 Declaration of Conformity.pdfHoffman PPOD18105 Dimension Drawing (Europe, Middle East, Africa).pdfHoffman PPOD18105 Exploded View Drawing (North America).gifHoffman PPOD18105 Large Enclosure Handling Manual.pdfHoffman PPOD18105 Spec Sheet Europe.pdfHoffman PPOD18105 Spec Sheet.pdfHoffman PPOD18105 UL Certification.pdf
