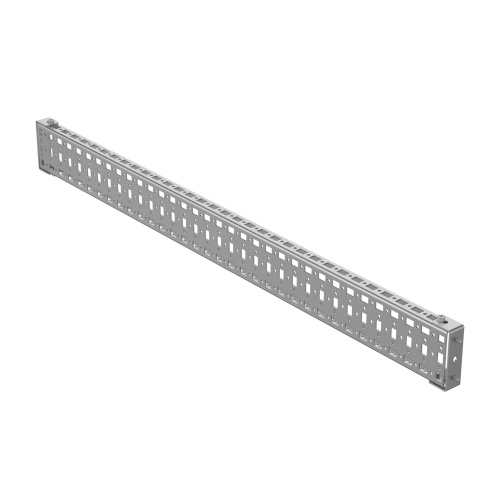

nVent Hoffman PGH3S7 Grid Straps
Normally In Stock
Code: 16284
nVent Hoffman PGH3S7 Horizontal Grid Straps. Furnished in pairs with Three Rows, fits 700 mm frame depth 600 mm frame width, 21.34" length.
Condition: New
Usually ships Same Day or Next Day$236.23
Sale Price
$196.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

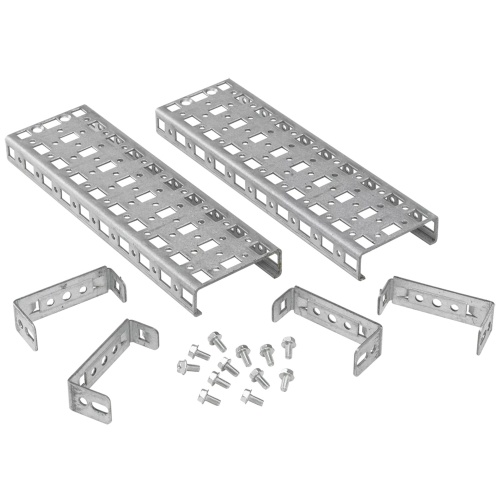

nVent Hoffman PGH3S7 PROLINE Grid Strap. Can be mounted front-to-back horizontally across the bottom or sides of the PROLINE frame. Can be mounted left-to-right horizontally between front-to back. Can be mounted vertically between horizontally mounted Grid Straps. Provided with specially designed rectangular holes to allow the use of cage nuts or front-loading cage nuts. Mounting holes are provided on 25-mm centers. Mounting hardware included to attach Grid Straps to the frame or to other Grid Straps. 14 guage plated steel.
Specifications
Strap Fits Depth
700 mm
Strap Fits Width
600 mm
Strap Hole Pattern
3-Row
(Rack Angle/Mounting) Composition
Steel
Component
Grid Strap
Manufacturer
Hoffman
Features
Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
Can be mounted vertically between horizontally mounted Grid Straps
Downloads
Hoffman PGH3S7 2D DXF CAD.zipHoffman PGH3S7 3D STEP CAD.zipHoffman PGH3S7 CAD Drawing.zipHoffman PGH3S7 Catalog (Europe only).pdfHoffman PGH3S7 Declaration of Compliance.pdfHoffman PGH3S7 Dimension Drawing.gifHoffman PGH3S7 EU Certification.pdfHoffman PGH3S7 Instruction Manual.pdfHoffman PGH3S7 Spec Sheet (North America only).pdfHoffman PGH3S7 Spec Sheet 2.pdfHoffman PGH3S7 Spec Sheet Europe.pdfHoffman PGH3S7 Spec Sheet.pdf
