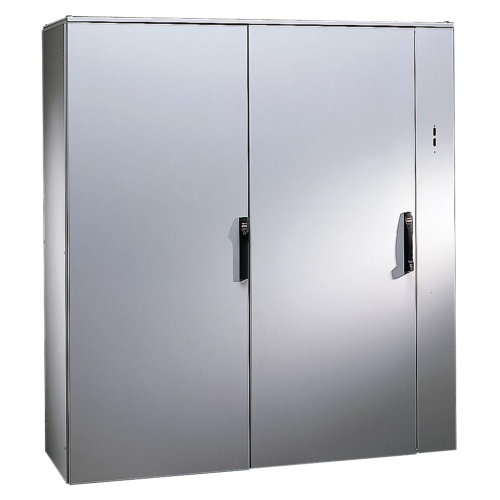

nVent Hoffman PTDDC20186 PROLINE-DD Disconnect Enclosure
Normally In Stock
Code: 15925
nVent Hoffman PTDDC20186 78.11"x71.18"x23.58" Type 12 Indoor Free Standing Modular Enclosure Solutions
Condition: New
Usually ships Same Day or Next Day$12702.95
Sale Price
$10585.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman PTDDC20186 PROLINE-DD Disconnect Enclosure For a modular disconnect system with application flexibility, choose a PROLINE-DD Modular Enclosure. These two-door packages and their components are compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Specifications
Enclosure Mount Type
Free-Standing
Freestanding Enclosure Base Type
Floor Mount
Enclosure Number of Doors
2 Door
Line
Proline-DD
Enclosure Depth
23.75"
Enclosure Height
78.25"
Enclosure Width
71.25"
Component
Modular Disconnect Enclosure
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Composition
Steel
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Mullion door is hinged on the right, with primary and secondary doors hinged on the left
Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
Gasket and latching system together ensure a solid seal with low closure force
Galvanized mounting plate in 3.0mm steel supplied standard
Standard door bars increase strength and rigidity and allow for an extra mounting options
Frames are roll-formed, robotically welded with solid steel, fully welded corners, accommodates 25 mm DIN standard
Capped ground studs on door, rear and top panel
Rear panel(s) and solid top 1.5 mm, carbon steel powder painted, RAL 7035
Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
Integral frame channels support the full weight of the mounting plates
Compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Downloads
Hoffman PTDDC20186 2D DXF CAD.zipHoffman PTDDC20186 3D STEP CAD.zipHoffman PTDDC20186 CSA Certification.pdfHoffman PTDDC20186 Declaration of Compliance.pdfHoffman PTDDC20186 Dimension Drawing.gifHoffman PTDDC20186 EU Certification.pdfHoffman PTDDC20186 Large Enclosure Handling Manual.pdfHoffman PTDDC20186 Spec Sheet.pdfHoffman PTDDC20186 UL Certification.pdf
