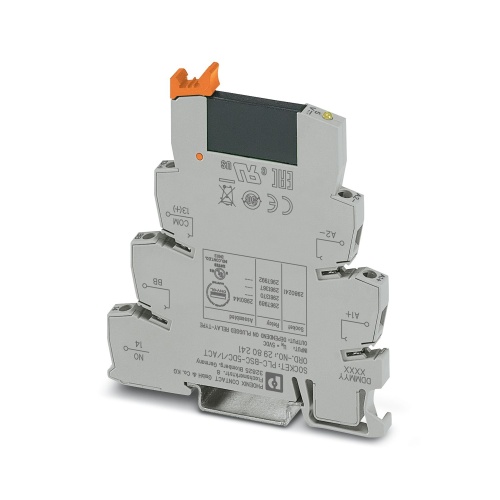

Phoenix Contact 2980144 Solid-state relay module PLC-OSC- 5DC/ 24DC/ 2/ACT
Normally In Stock
Code: 1564
Phoenix Contact Miniature Solid State Relay 2980144 PLC-OSC- 5DC/ 24DC/ 2/ACT. 5 VDC Input Coil Voltage, 3A Load Amperage, 3-33 VDC Output Load Voltage. Single Pole Single Throw with 1 Normally Open Contact. Screw Connection and DIN-rail mounted.
Condition: New
Usually ships Same Day or Next Day $57.74
Sale Price
$48.12
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2980144 A PLC-Interface for output functions includes a PLC-BSC basic terminal block with screw connections and plug-in miniature solid-state relays that can be mounted on a DIN rail. The terminal block features one N/O contact and accepts a 5V DC input, while providing a DC output ranging from 3 to 33 volts and up to 3 amps.
Specifications
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Relay Indication
No Indicator
Component
Relay Module-Solid State
Manufacturer
Phoenix Contact
Relay Input Amperage
9 Mamp
Relay Application
Input Function Output Function
Relay Load Voltage DC Rating
3 Volt - 33 Volt
Coil Voltage Rating
4-6 Volt
Features
Actuator connected directly to relay module
No need for additional modular terminal blocks
Efficient connection to system cabling using V8 adapter
Time savings of up to 60 %
Relay modules with safe isolation according to DIN EN 50178 between coil and contact
Space savings of up to 80 %
Functional plug-in bridges
