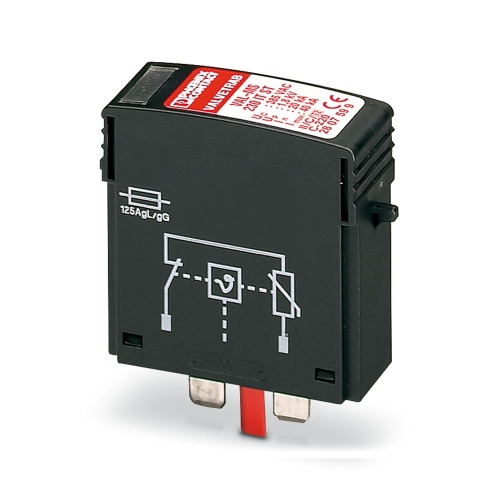

Phoenix Contact 2807599 Type 2 surge protection plug VAL-MS 230 IT ST
Normally In Stock
Code: 1086
VAL-MS 230 IT ST Phoenix Contact VAL-MS 230 IT ST Surge protection connector type 2 with high-capacity varistor for VAL-MS base element. Design: 230 V AC (IT system
Condition: New
Usually ships within 7-14 days. Call for ship time.$135.68
Sale Price
$113.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2807599 A surge protection connector type 2 is designed to provide high-capacity protection against voltage surges for the VAL-MS base element in an IT system with a design operating at 230 V AC power. This device features a varistor that can handle high-capacity energy release, as well as thermal monitoring and visual fault warning indicators to ensure safe operation and prompt detection of any potential issues.
Specifications
Surge Protector Mount
Din Rail Mount
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Direction of Action
(L+)-PE
Direction of Action
(L-)-PE
Direction of Action
(L+)-(L-)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Protection Plug
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2807599 CAD data International.dxfPhoenix 2807599 CAD data International.pdfPhoenix 2807599 CAD data International.stpPhoenix 2807599 CAD Drawing.zipPhoenix 2807599 Flyer English.pdfPhoenix 2807599 Manufacturers declaration English.pdfPhoenix 2807599 Manufacturers declaration International.pdfPhoenix 2807599 Package Slip International.pdfPhoenix 2807599 Product Information English.pdfPhoenix 2807599 Software International.zipPhoenix 2807599 Spec Sheet.pdfPhoenix 2807599 Surge Protection English.pdfPhoenix 2807599 Tender Text English.zipPhoenix 2807599 User Manual.pdfPhoenix 2807599 Various International.pdf
