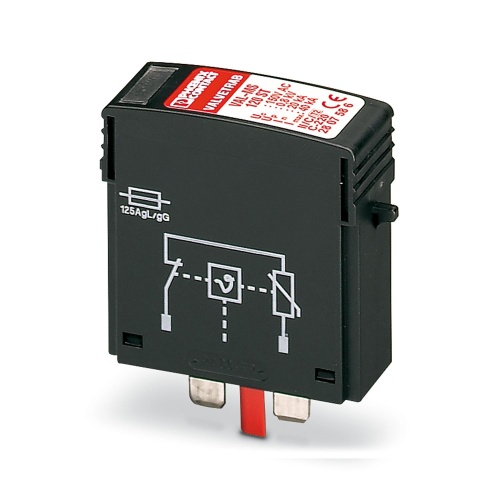

Phoenix Contact 2807586 Type 2 surge protection plug VAL-MS 120 ST
Normally In Stock
Code: 1084
VAL-MS 120 ST Phoenix Contact VAL-MS 120 ST Surge protection connector type 2 with high-capacity varistor for VAL-MS base element. Design: 120 V AC
Condition: New
Usually ships Same Day or Next Day$135.68
Sale Price
$113.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2807586 A surge protection connector type 2 is designed to protect a VAL-MS base element from power surges and spikes, featuring a high-capacity varistor that absorbs excessive electrical energy, as well as built-in thermal monitoring and visual indicators for early warning of potential faults at 120V AC.
Specifications
Surge Protector Mount
Din Rail Mount
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
5 Ka
Surge Protector Line Voltage
120-208 Volt
Component
Surge Protection Plug
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2807586 CAD data International.dxfPhoenix 2807586 CAD data International.pdfPhoenix 2807586 CAD data International.stpPhoenix 2807586 CAD Drawing.zipPhoenix 2807586 Certification English.jpgPhoenix 2807586 Flyer English.pdfPhoenix 2807586 Manufacturers declaration English.pdfPhoenix 2807586 Manufacturers declaration International.pdfPhoenix 2807586 Package Slip International.pdfPhoenix 2807586 Software International.zipPhoenix 2807586 Spec Sheet.pdfPhoenix 2807586 Surge Protection English.pdfPhoenix 2807586 Tender Text English.zipPhoenix 2807586 User Manual.pdfPhoenix 2807586 Various International.pdf
