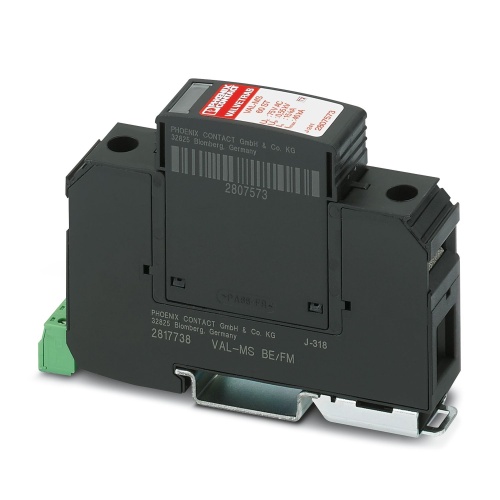

Phoenix Contact 2868033 Type 2 surge arrester VAL-MS 60/FM
Normally In Stock
Code: 1073
VAL-MS 60/FM Phoenix Contact VAL-MS 60/FM Surge arrester consisting of base element with remote indicator contact and protective connector with high-capacity varistor, for mounting on NS 35/7.5, 1-channel
Condition: New
Usually ships within 7-14 days. Call for ship time.$170.75
Sale Price
$142.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2868033 A surge arrester designed specifically for mounting on a 35/7.5 frame, this device features a high-capacity varistor connected to a protective connector and remote indicator contact, ideal for one-channel installation.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
B3
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
350 Amp
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
6 Volt
Surge Protector Line Voltage
60 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2868033 CAD data International.dxfPhoenix 2868033 CAD data International.pdfPhoenix 2868033 CAD data International.stpPhoenix 2868033 CAD Drawing.zipPhoenix 2868033 Flyer English.pdfPhoenix 2868033 Manufacturers declaration English.pdfPhoenix 2868033 Manufacturers declaration International.pdfPhoenix 2868033 Package Slip International.pdfPhoenix 2868033 Software International.zipPhoenix 2868033 Spec Sheet.pdfPhoenix 2868033 Surge Protection English.pdfPhoenix 2868033 Tender Text English.zipPhoenix 2868033 User Manual.pdf
