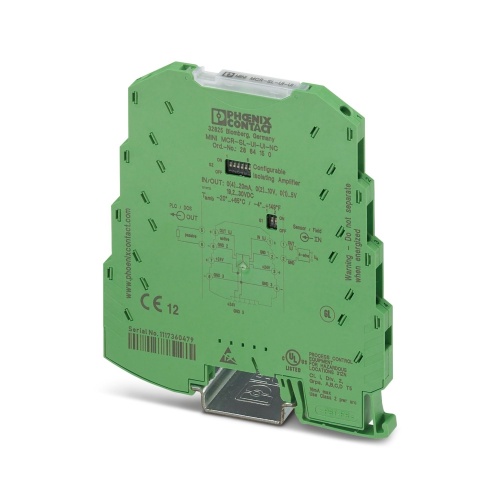

Phoenix Contact 2864150 Signal conditioner MINI MCR-SL-UI-UI-NC
Normally In Stock
Code: 10435
MINI MCR-SL-UI-UI-NC MINI MCR-SL-UI-UI-NC Phoenix Contact 2864150 Signal Conditioner Isolating Amplifier
Condition: New
Usually ships Same Day or Next Day$512.34
Sale Price
$426.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2864150 A three-way signal conditioner is used to electrically isolate analog signals and can have its I/O configuration adjusted using DIP switches with a screw connection, offering a standard setup by default.
Specifications
Conditioner Connection Type
Screw Connection
Conditioner Isolation
3 Way Isolation
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Conditioner Output Signal Range
0-10 Volt
Conditioner Output Signal Range
0-5 Volt
Conditioner Output Signal Range
1-5 Volt
Conditioner Output Signal Range
2-10 Volt
Manufacturer
Phoenix Contact
Conditioner Number Output Signals
1 Output Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Supply Voltage
24 VDC
Component
Signal Conditioner
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Conditioner Output Signal Range
0 Volt - 10 Volt
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Conditioner Output Signal Range
2 Volt - 10 Volt
Features
Power supply possible via the foot element (TBUS)
Up to 36 signal combinations can be configured using DIP switches
Low power consumption
Highly-compact isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals
3-way isolation
Downloads
Phoenix 2864150 CAD data International.dxfPhoenix 2864150 CAD data International.pdfPhoenix 2864150 CAD data International.stpPhoenix 2864150 CAD Drawing.zipPhoenix 2864150 Manual English.pdfPhoenix 2864150 Manufacturers declaration English.pdfPhoenix 2864150 Manufacturers declaration International-2.pdfPhoenix 2864150 Manufacturers declaration International-3.pdfPhoenix 2864150 Manufacturers declaration International.pdfPhoenix 2864150 Package Slip International.pdfPhoenix 2864150 Product Information English.pdfPhoenix 2864150 Software International.xlsPhoenix 2864150 Spec Sheet.pdfPhoenix 2864150 Tender Text English.zipPhoenix 2864150 User Manual.pdf
