Phoenix Contact 3044513 Screw Terminal Block UT 2.5-TWIN Gray
Normally In Stock
Code: 1036

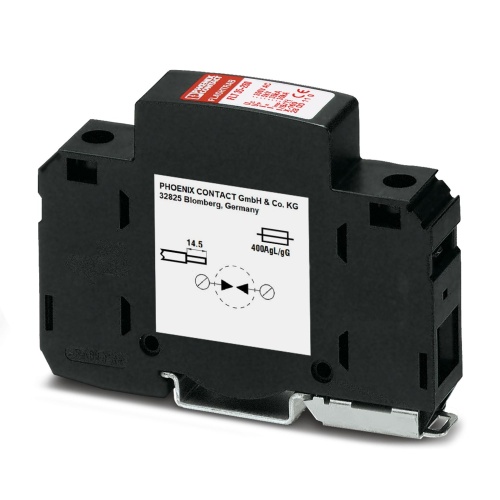

Phoenix Contact FLT 35-260 (One Channel) Type 1/Class I/B arrester (lightning current arrester) 1-channel. Housing width: 17.5 mm (1 Div.)
Condition: New
Usually ships Same Day or Next Day$576.25
Sale Price
$449.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

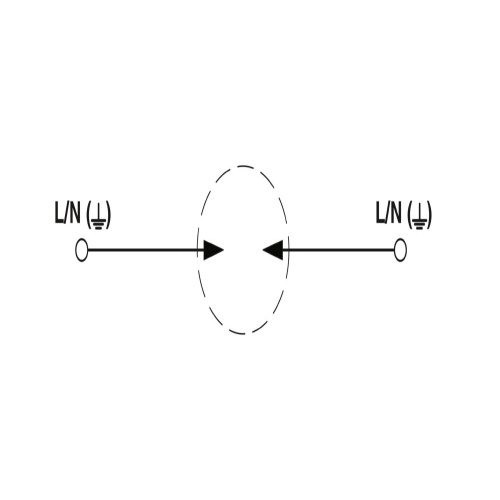

Phoenix Contact FLT 35-260 (One Channel) Type 1/Class I/B arrester (lightning current arrester) with encapsulated arc chopping spark gap, 1-channel. Housing width: 17.5 mm (1 Div.)
Specifications
Surge Protector Mount
Din Rail Mount
Interface
Type 1-Lightning Current Arrester
Fault Warning
None
Type
DIN Rail Module
Arrester Class according to IEC
I
Arrester Class according to IEC
T1
Mounting Type
DIN Rail: 35 mm
Type
One-Piece

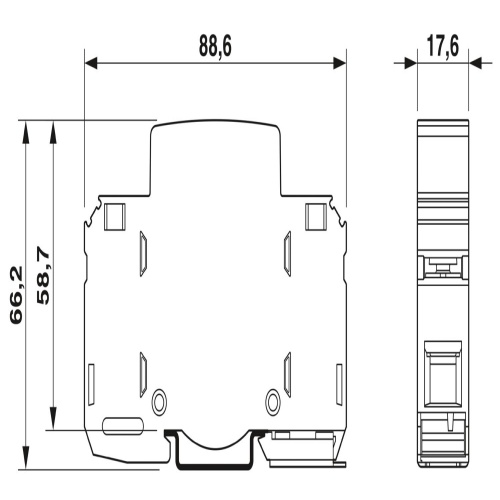

Width
17.6 mm
Nominal Discharge Current
35 Kamps
Connection Method
Screw Connection
Max Discharge Capacity
80 A
Nominal Voltage
230-400 VAC
Surge Protector Component
Complete Unit
Protection Component
Encapsulated Spark Gap
Protection Component
Combination Type
Impulse Discharge Current
35 Ka
