Code: 722544

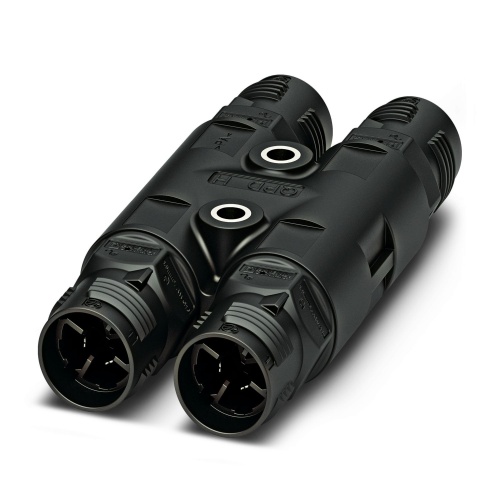

Phoenix Contact 1423973 H distributor QPD H3PE2,5 BK
Normally In Stock
Phoenix Contact QPD H3PE2,5 BK - H distributor, 4 Positions, 690 VAC, 20 Amp - 1423973
Condition: New
Usually ships Same Day or Next Day$58.61
Sale Price
$48.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1423973 A connector distributor offers a product family called QPD, which can be connected using either IDC connection or a quick fastening method known as QUICKON. The connectors come in various sizes including 3+PE, ranging from 1 mm2 to 2.5 mm2, and are rated for high currents of up to 20 A at 690 V, with a color that is black and without a QUICKON nut. Furthermore, the connectors have a coding profile that identifies them as part of this specific product family.
Specifications
Connector Amperage
20 Amp
Connector Color
Light Gray
Manufacturer
Phoenix Contact
Number of Connections
4
Number of Positions
4
Component
H Distributor
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Flexible and compact - by connecting connections internally, H and T-distributors can be used to branch master cables or they can be used as star distributors
