Code: 268543

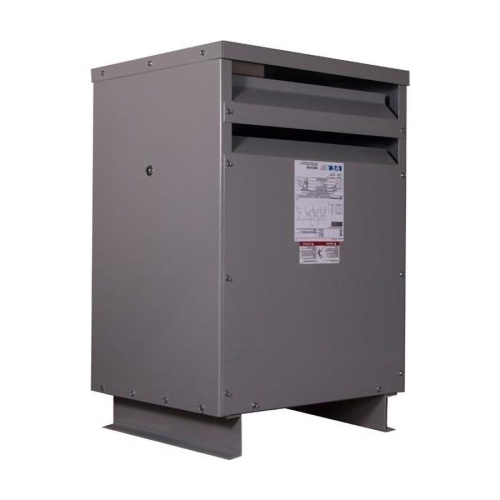

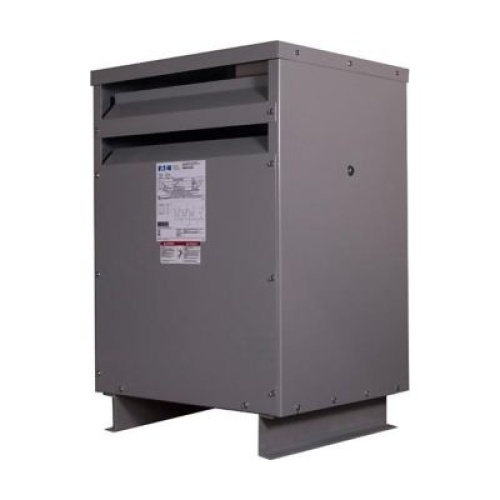

Eaton MD275E86 Drive Isolation Transformer - 275 kVA Three Phase
Normally In Stock
Eaton MD275E86 - Three Phase - 275 kVA - Primary Voltage: 208V - Secondary Voltage: 460Y/266V - 62.18" x 31.44" x 30.68" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$43781.10
Sale Price
$36484.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton MD275E86 - Ventilated, DT-3, Three-phase, PV: 208V, Taps: 1 at +5% FCAN, 1 at -5% FCBN, SV: 460Y/266V, 150°C, 275 kVA, Al windings, Frame: 918A, uses WS34
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
275 Kva
Manufacturer
Eaton
Component
Drive Isolation Transformer
Transformer Primary Voltage In
600V
Transformer Secondary Voltage Out
24V
Transformer Primary Voltage In
575V
Transformer Secondary Voltage Out
23V
Transformer Primary Voltage In
550V
Transformer Secondary Voltage Out
22V
Features
Thermal sensors embedded in coils can be wired to provide a signal to remote locations, indicating potential heating problems within the transformer coils
Get fast and easy connection with front accessible primary and secondary terminals
Easily identify terminals with clear labeling
Reduce installation time with slotted screw mounting holes in enclosure and cover
Reduce noise levels to meet NEMA ST-20 with sound dampening pads that isolate the core and coil from the case
