Code: 268483

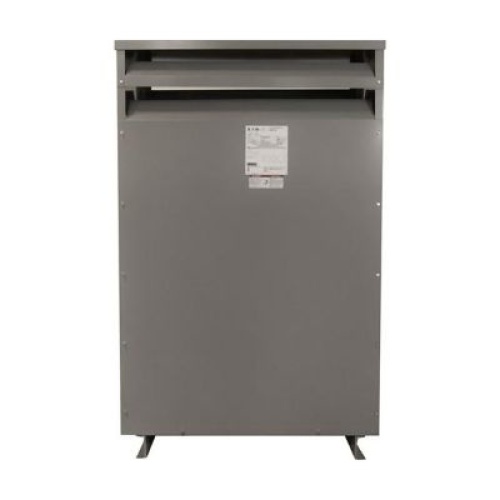

Eaton HT20P11F2516 Ventilated Transformer - 25 kVA Single Phase
Normally In Stock
Eaton HT20P11F2516 - Single Phase - 25 kVA - Primary Voltage: 240/480V - Secondary Voltage: 120/240V - 37.59" x 22.87" x 20.36" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$7609.66
Sale Price
$6341.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton HT20P11F2516 - K-Factor, KT-4 (1-phase), PV 240 x 480V, Taps: 1 at +5%/2 at -5% x 2 at +2.5%/4 at -2.5%, SV 120/240V, 115°C rise, 25 kVA, 16
Specifications
Transformer Voltage Phases
Single Phase
Transformer VoltAmp
25 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Transformer Primary Voltage In
600V
Transformer Secondary Voltage Out
24V
Transformer Primary Voltage In
575V
Transformer Secondary Voltage Out
23V
Transformer Primary Voltage In
550V
Transformer Secondary Voltage Out
22V
Features
Compliant to DOE 2016 and NEMA TP-1 efficiency standards, and transformers with other efficiency requirements
Specially designed to withstand the harmful overheating effects caused by harmonics generated by nonlinear (non-sinusoidal) loads
Neutral bus size configured to accommodate at least 200% of the rated current compensates for increased neutral currents found in non-linear loads, thus reducing heat
Electrostatic shield reduces transient noise in the system which may affect sensitive computer loads
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
Custom K-Factors available through the Flex Center
