Code: 268405

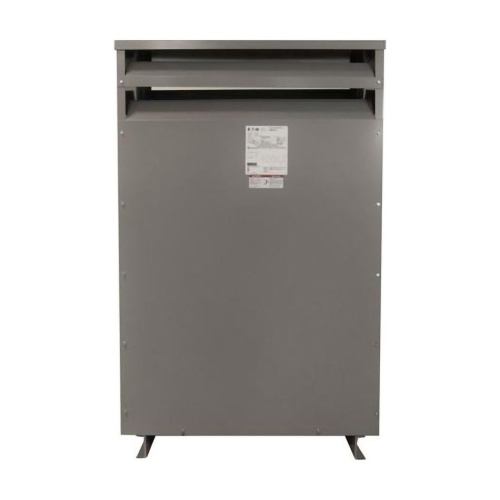

Eaton H48M28T2216CU Ventilated Transformer - 225 kVA Three Phase
Normally In Stock
Eaton H48M28T2216CU - Three Phase - 225 kVA - Primary Voltage: 480V - Secondary Voltage: 208Y/120V - 66.18" x 42.18" x 33.5" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$53001.88
Sale Price
$44168.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton H48M28T2216CU - K-Factor, Copper windings, NEMA 2, FR945, 60 Hz, 220°C, 225 kVA, Electrostatic shield, Floor, Three-phase, 480 Delta V, 208Y/120 Vac, NEMA ST-20, 150°C, 225 kVA, 480 Vac-208Y/120 Vac, DOE 2016
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
225 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Transformer Primary Voltage In
600V
Transformer Secondary Voltage Out
24V
Transformer Primary Voltage In
575V
Transformer Secondary Voltage Out
23V
Transformer Primary Voltage In
550V
Transformer Secondary Voltage Out
22V
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
