Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 268372

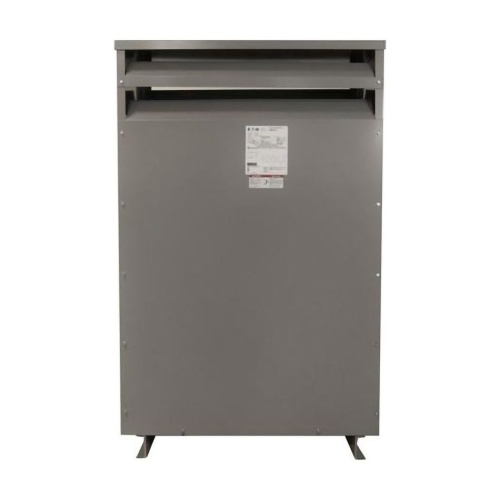

Eaton H48M28B2216 Ventilated Transformer - 225 kVA Three Phase
Normally In Stock
Eaton H48M28B2216 - Three Phase - 225 kVA - Primary Voltage: 480V - Secondary Voltage: 208Y/120V - 68.37" x 44.46" x 36.44" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$52617.71
Sale Price
$43848.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton H48M28B2216 - K-Factor, Aluminum windings, NEMA 2, FR924, 60 Hz, 220°C, 225 kVA, Electrostatic shield, Floor, Three-phase, 480 Delta V, 208Y/120 Vac, NEMA ST-20, 80°C, 225 kVA, 480 Vac-208Y/120 Vac, 283B
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
225 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Transformer Primary Voltage In
600V
Transformer Secondary Voltage Out
208Y/120V
Transformer Primary Voltage In
460V
Transformer Primary Voltage In
380V
Features
Includes transformers with DOE 2016 and NEMA TP-1 efficiency requirements, and transformers with other efficiency requirements
Ventilated dry-type distribution transformers provide options in aluminum or copper windings
Available in 150 °C, 115 °C, and 80 °C temperature rise
Optional low-sound 3 dB and 5 dB below NEMA ST-20 standard
Available in 60 and 50 Hz
NEMA 2 standard enclosures, NEMA 3R with field-installed weathershields
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
