Code: 268353

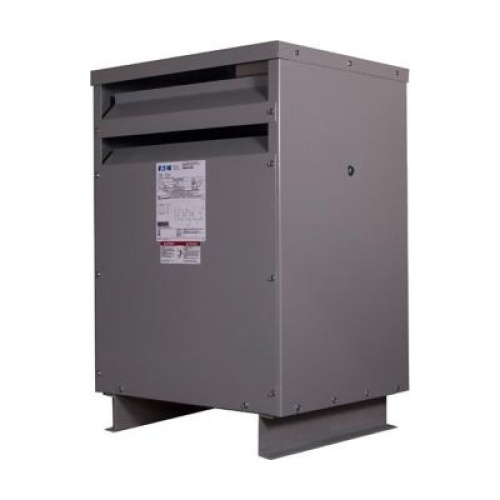

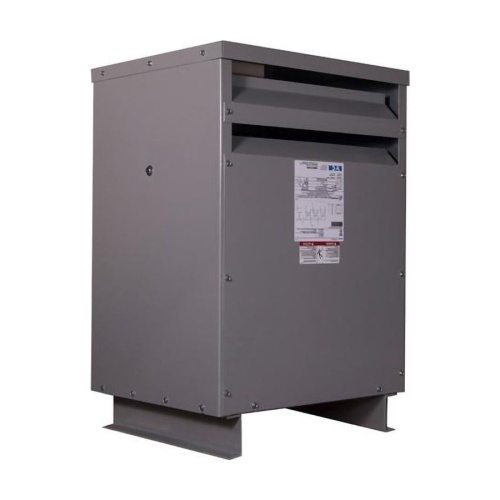

Eaton D32009 Dry Type Distribution Transformer - 220 kVA Three Phase
Normally In Stock
Eaton D32009 - Three Phase - 220 kVA - Primary Voltage: 230V - Secondary Voltage: 460Y/266V - 62.18" x 31.44" x 30.68" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$43213.92
Sale Price
$36011.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton D32009 - Ventilated, DT-3, Three-phase, PV: 230 delta, Taps: 1 at +5% FCAN, 1 at -5% FCBN, SV: 460Y/266V, 150°C, 220 kVA, Al windings, Frame: 918A, uses WS34
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
220 Kva
Manufacturer
Eaton
Component
Dry Type Distribution Transformer
Transformer Primary Voltage In
600V
Transformer Secondary Voltage Out
120V
Transformer Primary Voltage In
575V
Transformer Secondary Voltage Out
110V
Transformer Secondary Voltage Out
115V
Transformer Primary Voltage In
550V
Features
Thermal sensors embedded in coils can be wired to provide a signal to remote locations, indicating potential heating problems within the transformer coils
Get fast and easy connection with front accessible primary and secondary terminals
Easily identify terminals with clear labeling
Reduce installation time with slotted screw mounting holes in enclosure and cover
Reduce noise levels to meet NEMA ST-20 with sound dampening pads that isolate the core and coil from the case
