Code: 1348
Phoenix Contact 0800410 Shrink sleeve WMS 6,4 (30X10)R YE
Normally In Stock
Phoenix Contact WMS 6, 4 (30X10)R YE Yellow Marker for THERMOARK Roll Printer, 1 perforation/2 labels per sleeve, 500 labels on 250 sleeves, Yellow, labeling field: 30 x 10 mm, accepts up to 6.4 mm diameter conductor. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$273.12
Sale Price
$227.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0800410 The shrink sleeve is a yellow roll with a limited number of labels that can be applied to it, including THERMOMARK products such as E.300 and ROLLMASTER, with a range of cable diameters from 2.1 to 6.4mm and designed for slide-on mounting, featuring individual labels in a field measuring 10mm high by 30mm wide, with an overall capacity for up to 500 distinct labels.
Specifications
Label Color
Yellow
Label Preforations
1 Preforation
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Color
Yellow
Marking Width
10 mm
Manufacturer
Phoenix Contact
THHN Wire Gauge
6-8 Gauge THHN Wire
Marking Lettering Field Size
30 mm X 10 mm
Component
Wire Heatshrink Label
Features

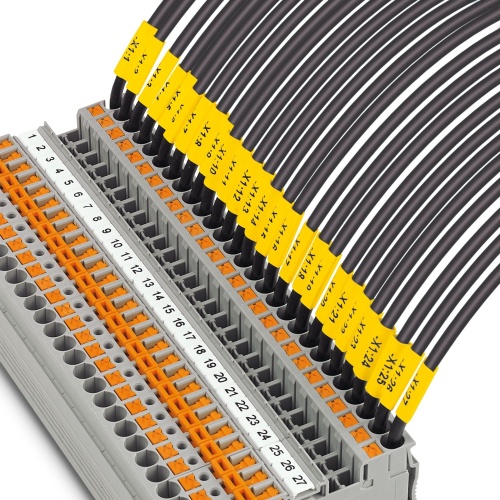

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Ladder style design: For a good overview and to facilitate quick use, the sleeves are preassembled in cut lengths: 15 mm, 30 mm, or 60 mm
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position
High diameter coverage with a shrink ratio of 3:1

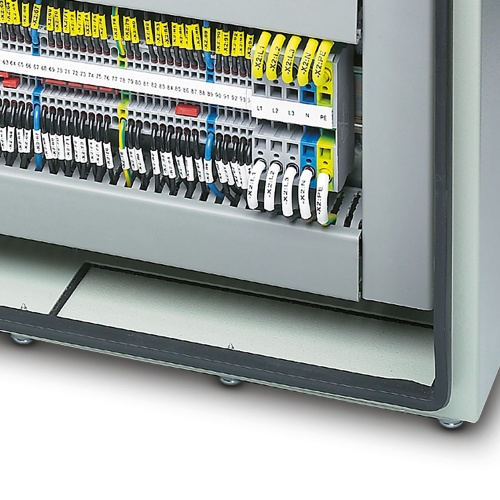

Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
